Repair Procedures: Inspection

  1. Remove the front seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

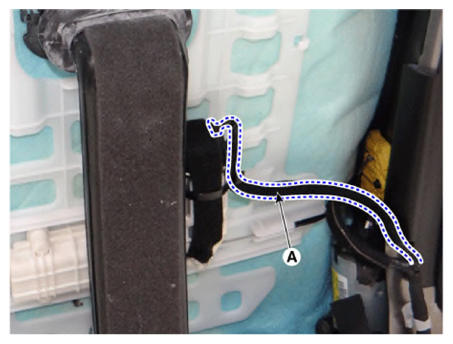

  2. Disconnect the connector (A).
    G13312462Courtesy of KIA MOTORS AMERICA, INC.
  3. When the battery power is supplied to the motor connector, check the motor for smooth operation.
G13312463Courtesy of KIA MOTORS AMERICA, INC.
