Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

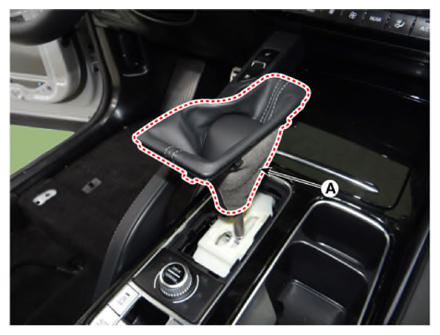

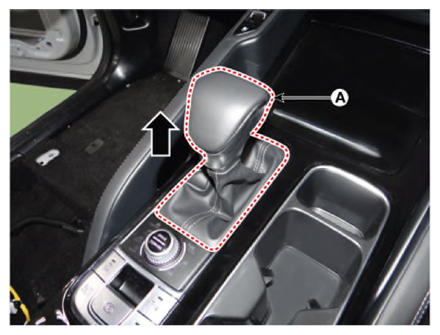

Remove the gear knob & boots (A) by pulling it upwards.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

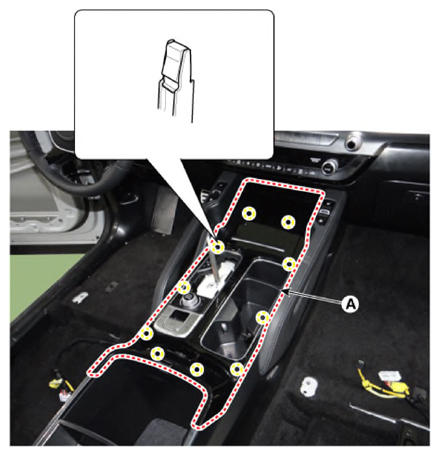

Using a screwdriver or remover, remove the console upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

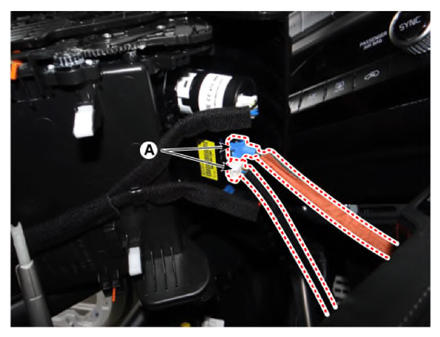

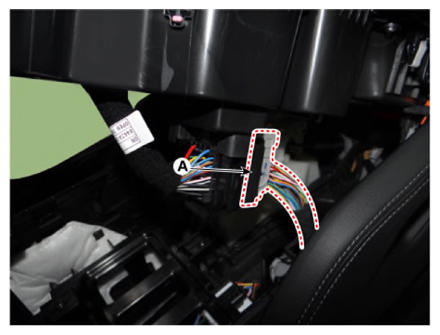

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

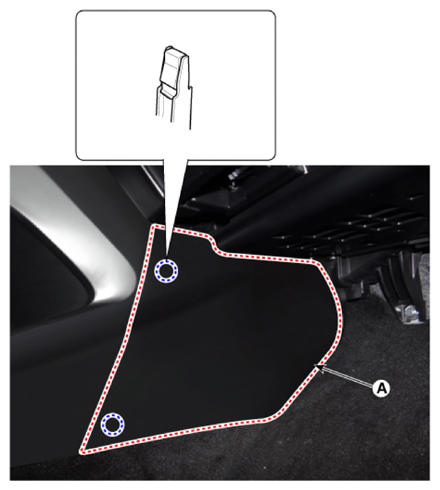

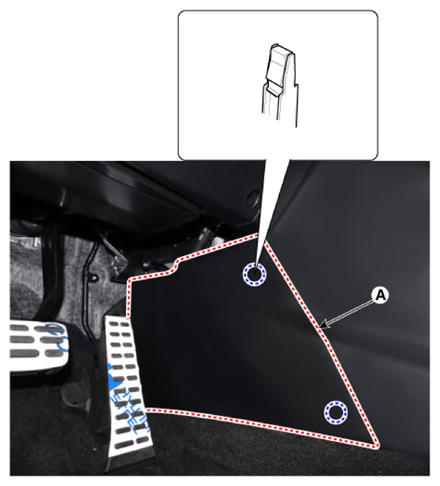

Using a screwdriver or remover, remove the console side cover (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Remove the console armrest tray (A).

Courtesy of KIA MOTORS AMERICA, INC.

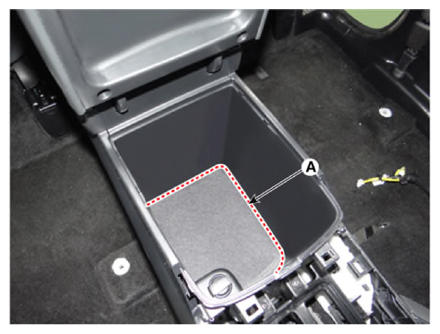

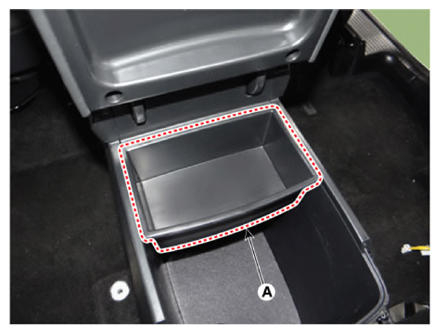

Remove the storage box pad (A).

Courtesy of KIA MOTORS AMERICA, INC.

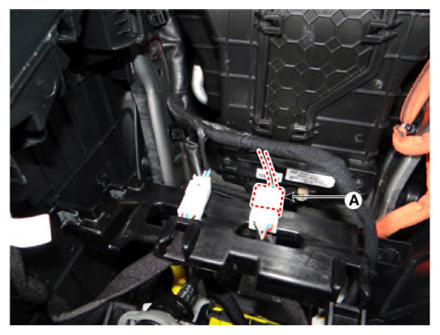

Separate the rear console assembly connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

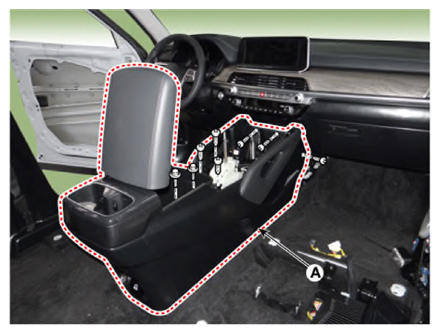

After loosening the mounting screws and bolts, remove the floor console assembly (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 Kgf.m, 5.1 - 8.0 lb.ft, 60.8 - 95.5 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
