Repair Procedures: Replacement

CAUTION: Wear gloves to protect hands from injury.

Information

When removing and installing the liftgate, an assistant is needed.

Remove the liftgate Trim.
(Refer to Liftgate - "LIFTGATE TRIM ")

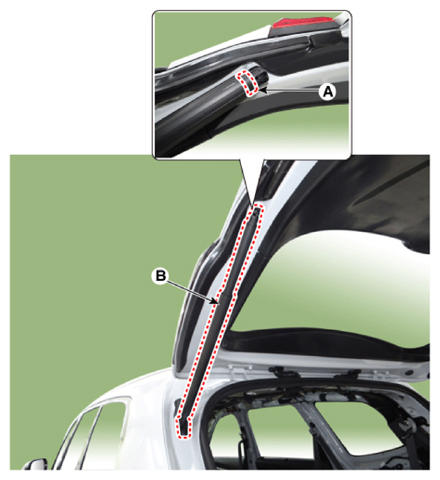

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the tailgate lifter (B).

Courtesy of KIA MOTORS AMERICA, INC.

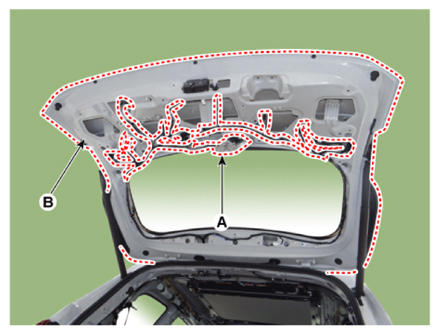

Disconnect the connectors and liftgate wiring harness (A).
After loosening the mounting bolts, then remove the liftgate assembly (B).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 Kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
NOTE:
- Make sure the liftgate locks/unlocks and opens/closes properly.
- Adjust the liftgate alignment.
- Make sure the connectors are connected in properly.
- Replace any damaged clips (or pin-type retainers).
