■Calibration procedure

  1. Check for vehicle alignment and tire pressure for accurate camera calibration.
  2. Windshield must be clean and free of any dirt or object.
  3. Calibration target installation procedure as follows:

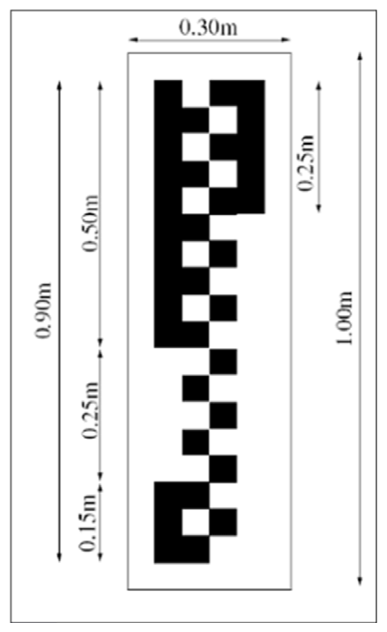

    1. Set the calibration target height approx. 88 to 92cm from the ground and align the center of target with center line of vehicle.
    2. Center of target and center of vehicle should be within -5 to +5cm
    3. Position the calibration target approx. 0cm from the center of vehicle front wheel. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1 degree. (close range target setting)
    4. Perform distance target setting after performing close target setting.

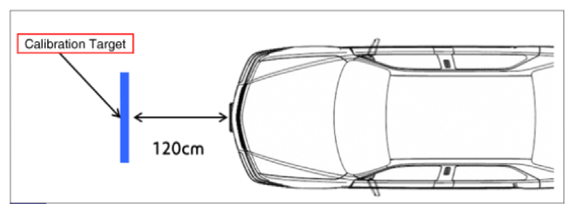

    5. Position the calibration target 1.2 m from the front bumper. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1 degree. (far range target setting)
G13336469Courtesy of KIA MOTORS AMERICA, INC.
G13336470Courtesy of KIA MOTORS AMERICA, INC.

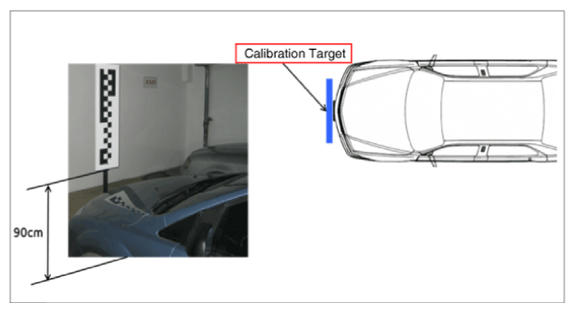

G13336471Courtesy of KIA MOTORS AMERICA, INC.
G13336472Courtesy of KIA MOTORS AMERICA, INC.

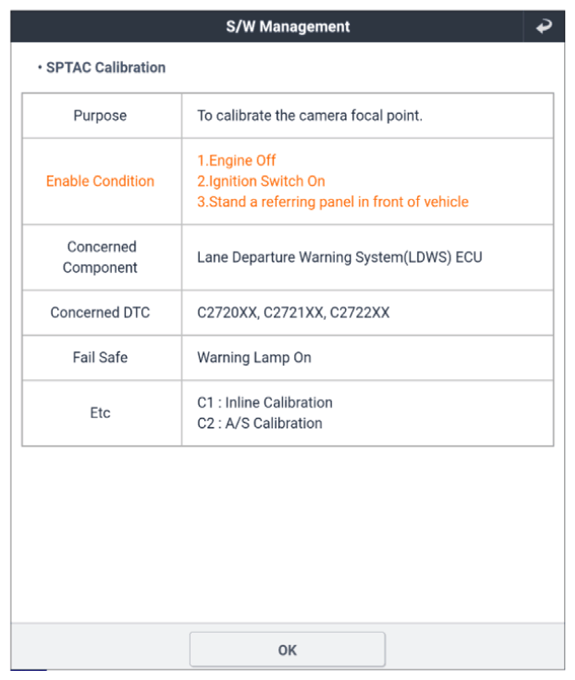

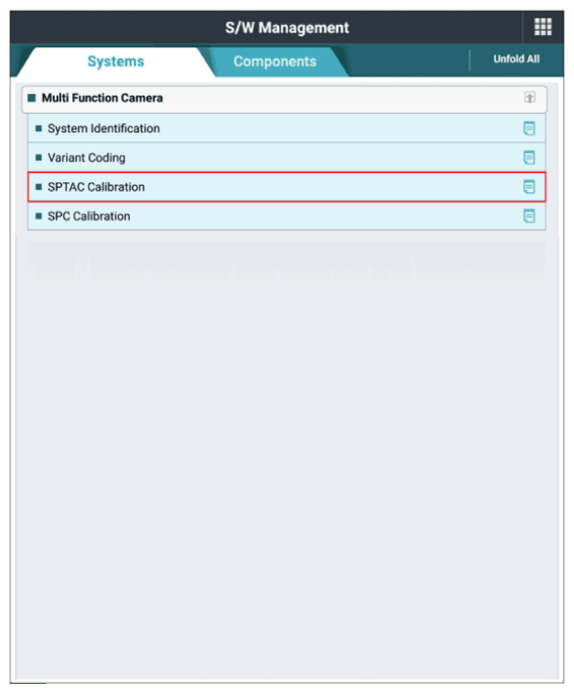

G13336473Courtesy of KIA MOTORS AMERICA, INC.

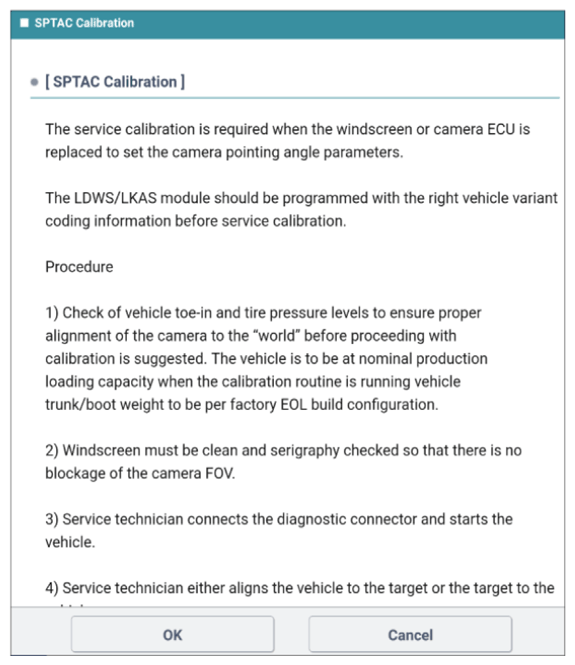

G13336474Courtesy of KIA MOTORS AMERICA, INC.

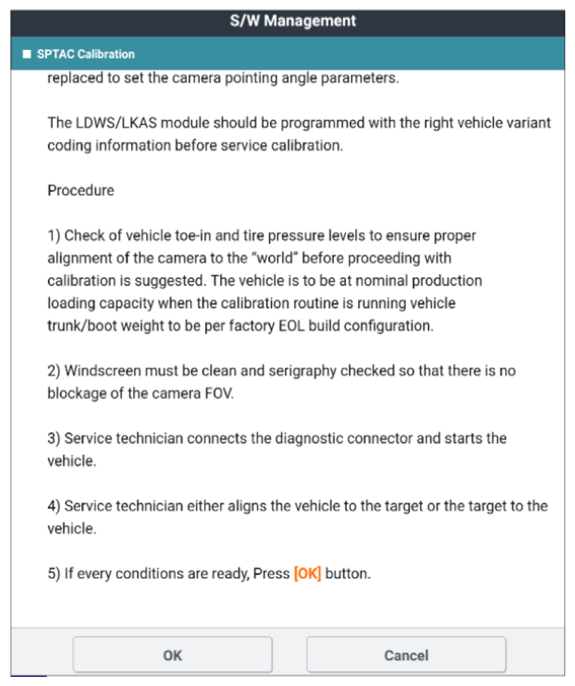

G13336475Courtesy of KIA MOTORS AMERICA, INC.

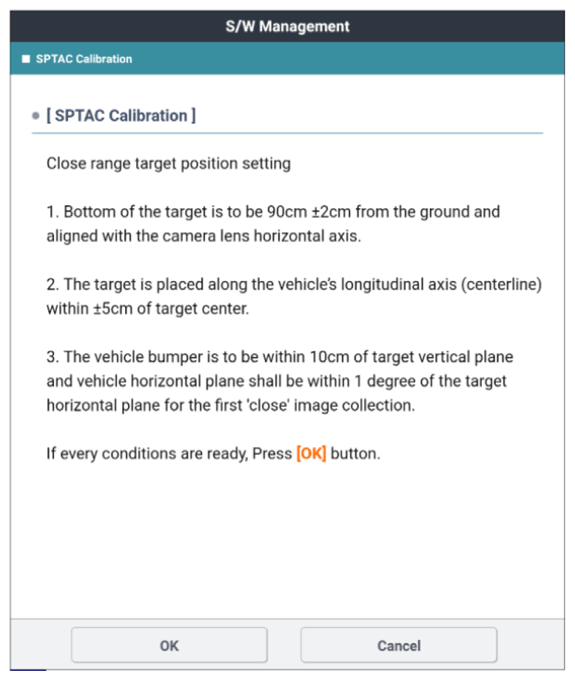

G13336476Courtesy of KIA MOTORS AMERICA, INC.

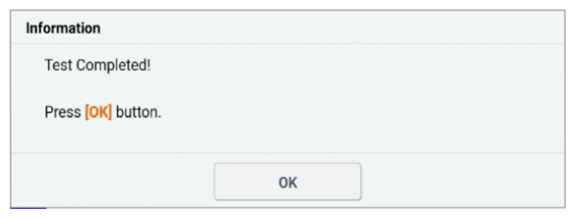

G13336477Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON". (without calibration target)
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 5 below

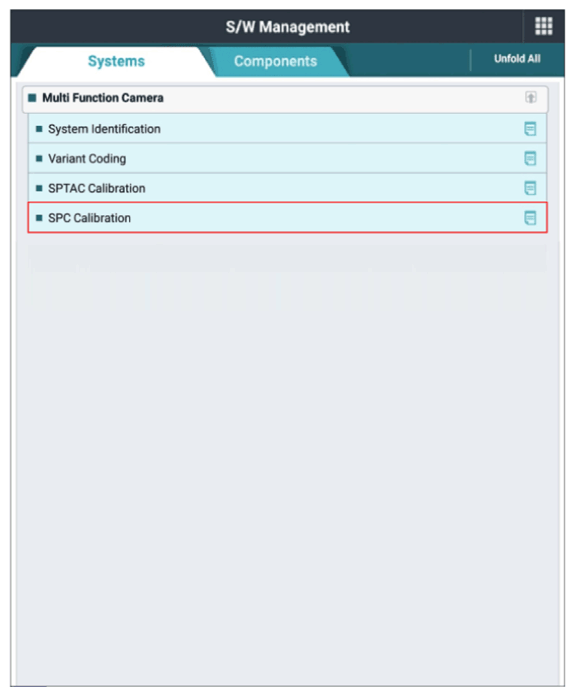

G13336478Courtesy of KIA MOTORS AMERICA, INC.

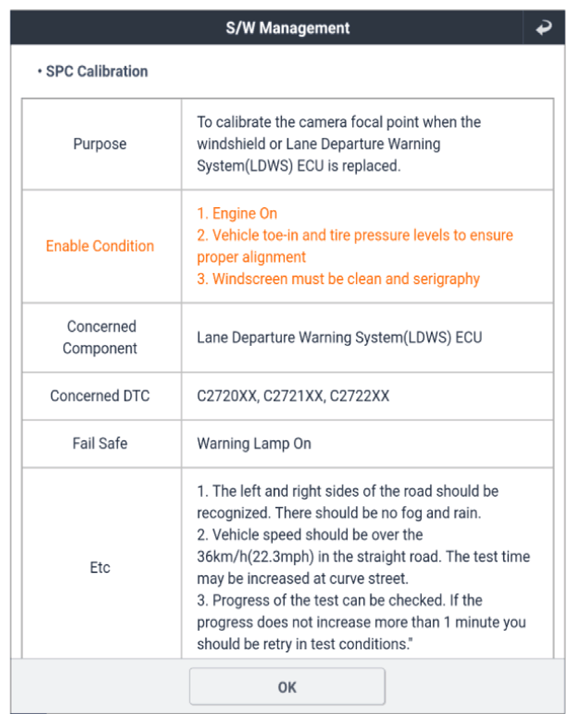

G13336479Courtesy of KIA MOTORS AMERICA, INC.

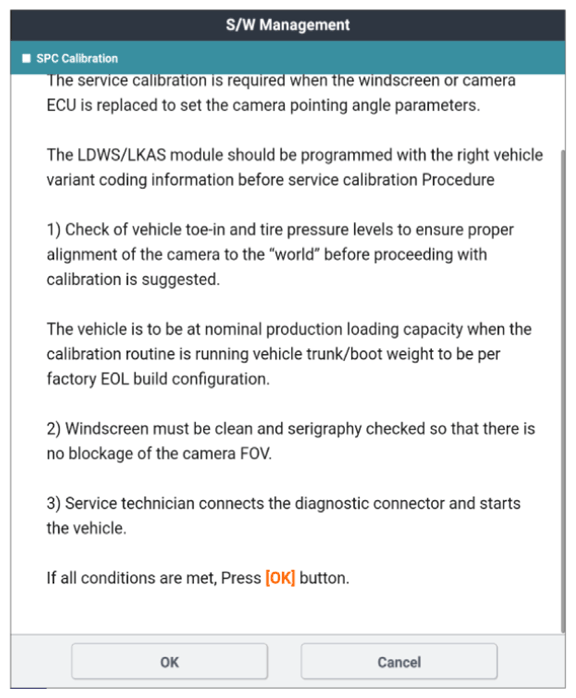

G13336480Courtesy of KIA MOTORS AMERICA, INC.

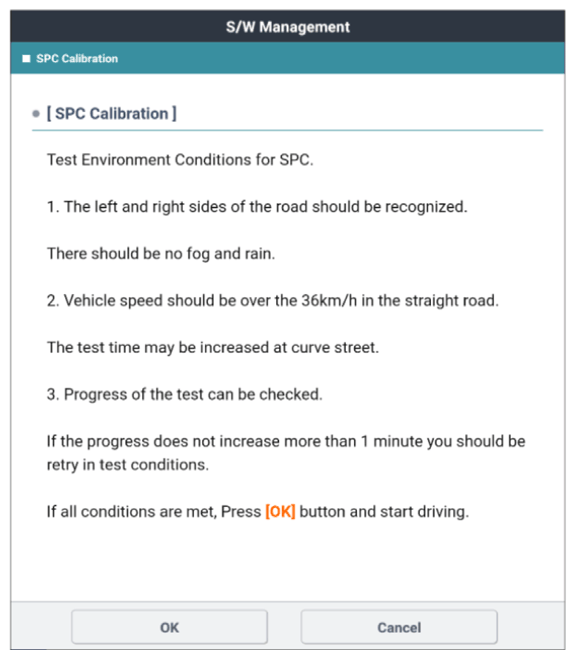

G13336481Courtesy of KIA MOTORS AMERICA, INC.
G13336482Courtesy of KIA MOTORS AMERICA, INC.
