Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Figures 1 to 10 below

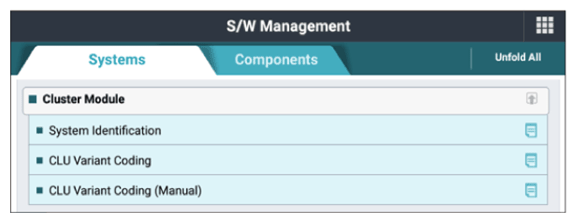

G13333155

Courtesy of KIA MOTORS AMERICA, INC.

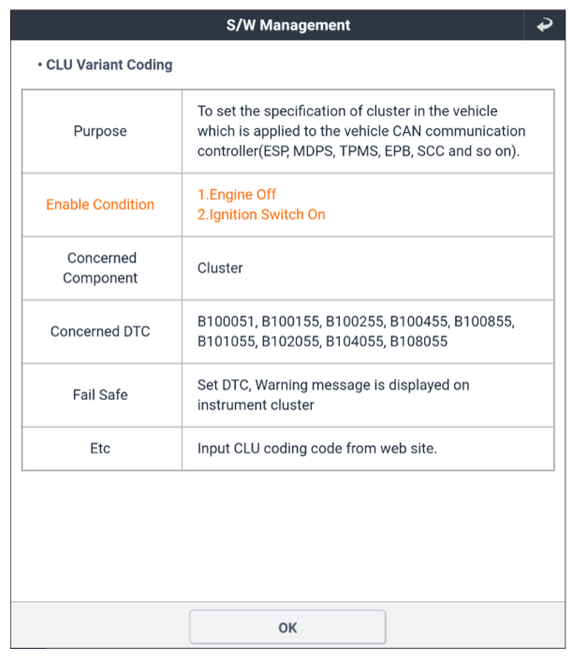

G13333156

Courtesy of KIA MOTORS AMERICA, INC.

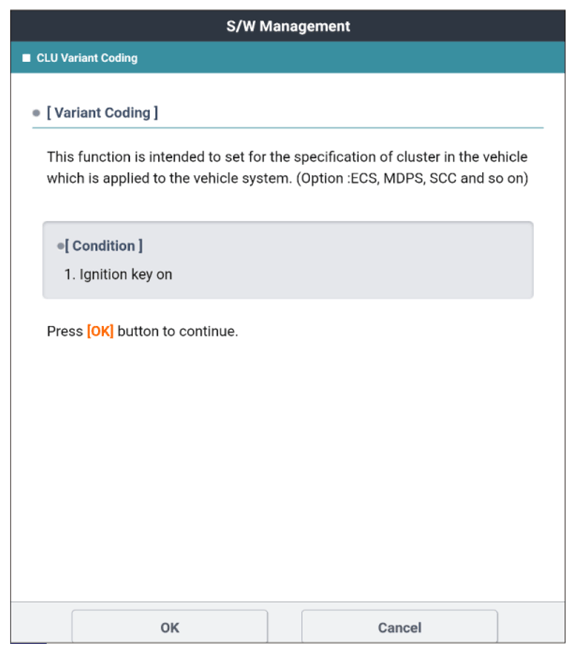

G13333157

Courtesy of KIA MOTORS AMERICA, INC.

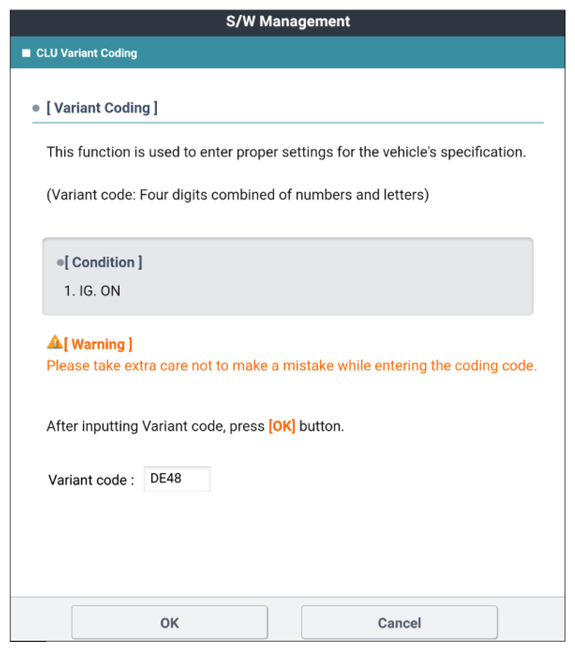

G13333158

Courtesy of KIA MOTORS AMERICA, INC.

G13333159

Courtesy of KIA MOTORS AMERICA, INC.

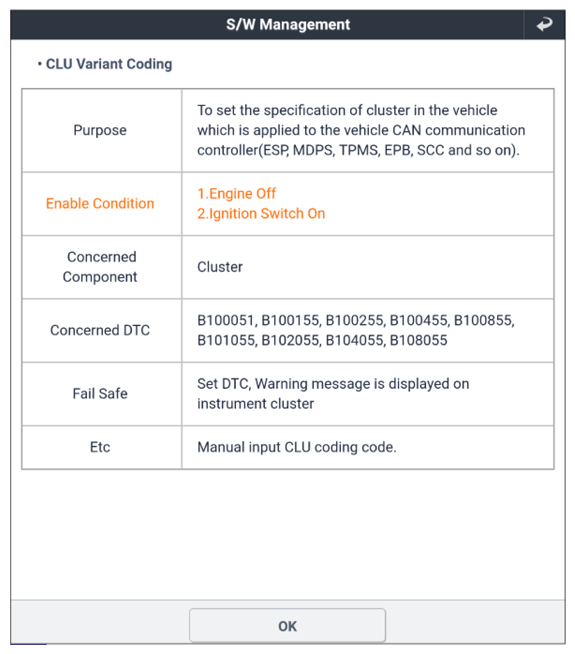

G13333160

Courtesy of KIA MOTORS AMERICA, INC.

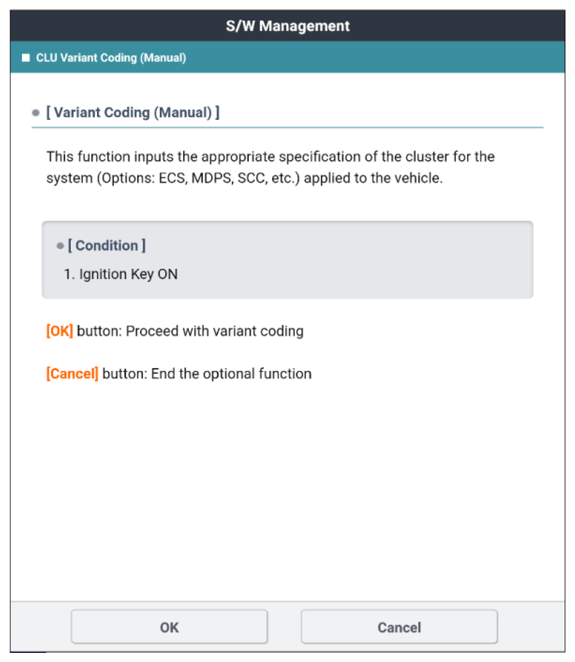

G13333161

Courtesy of KIA MOTORS AMERICA, INC.

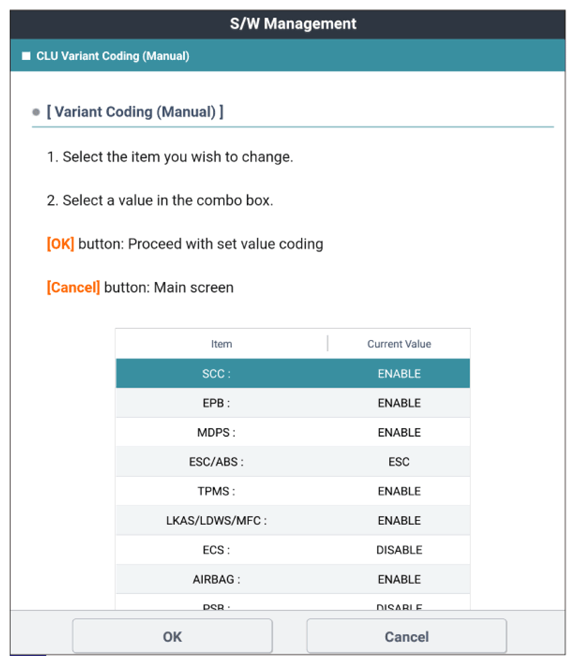

G13333162

Courtesy of KIA MOTORS AMERICA, INC.

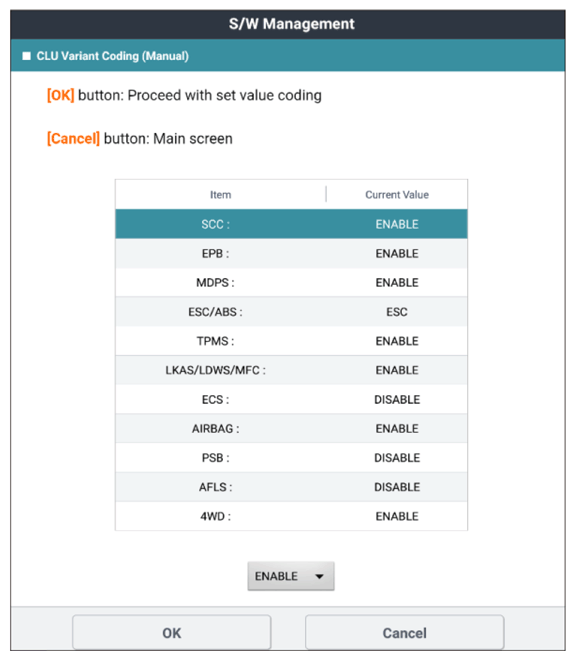

G13333163

Courtesy of KIA MOTORS AMERICA, INC.

G13333164

Courtesy of KIA MOTORS AMERICA, INC.
