Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.

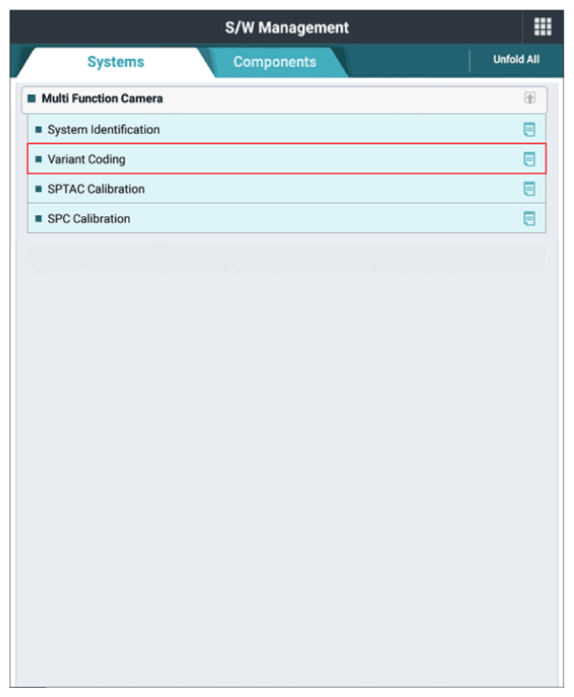

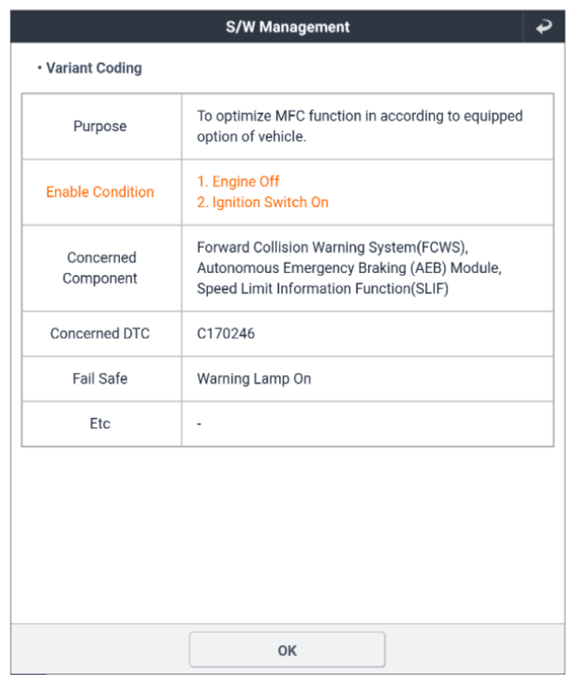

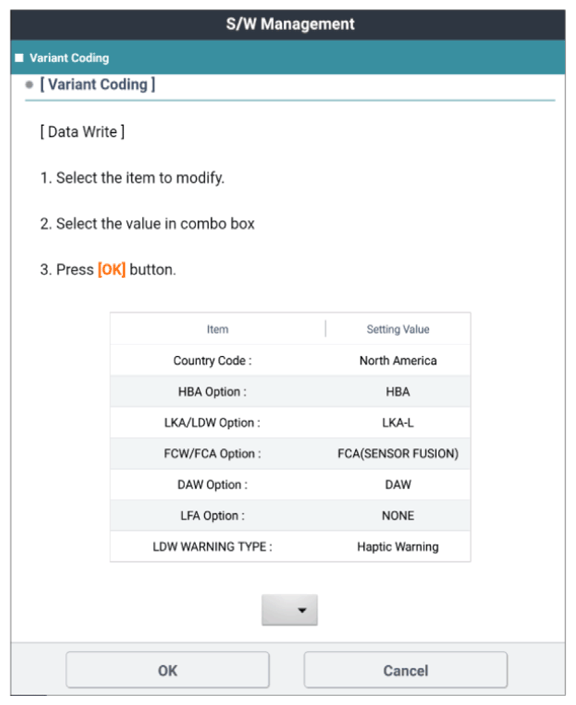

 Figures 1 to 4 below
G13336440Courtesy of KIA MOTORS AMERICA, INC.
G13336441Courtesy of KIA MOTORS AMERICA, INC.
G13336442Courtesy of KIA MOTORS AMERICA, INC.
G13336443Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON". (with calibration target)
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 9 below
