Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 5 below

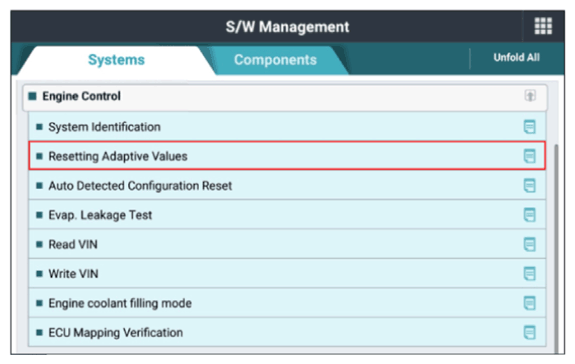

G13333902Courtesy of KIA MOTORS AMERICA, INC.

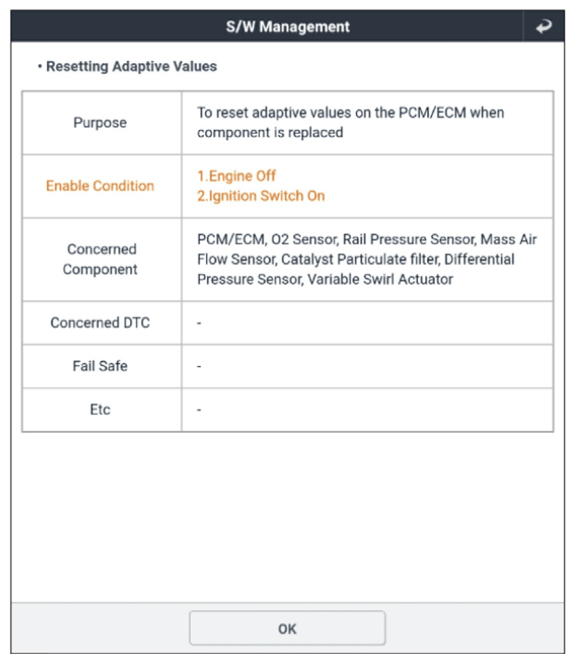

G13333903Courtesy of KIA MOTORS AMERICA, INC.

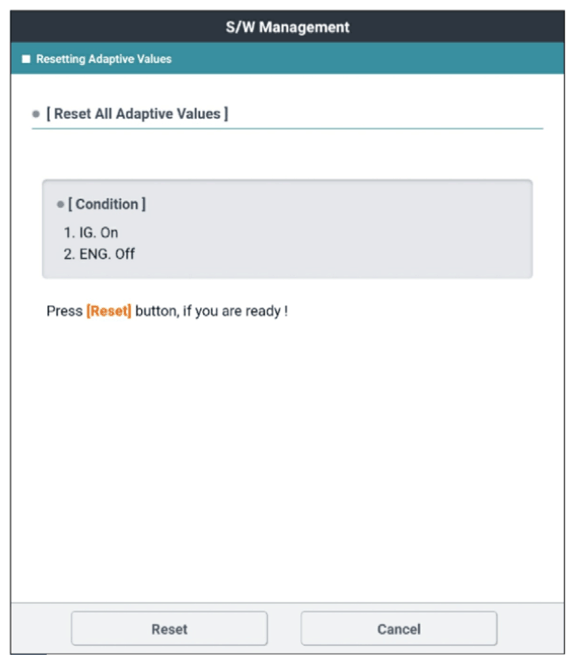

G13333904Courtesy of KIA MOTORS AMERICA, INC.

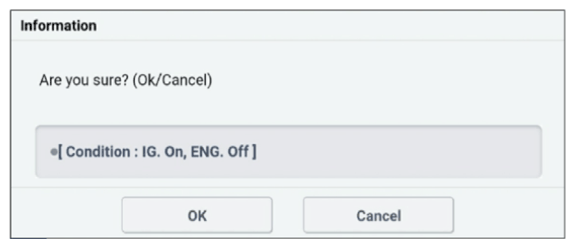

G13333905Courtesy of KIA MOTORS AMERICA, INC.

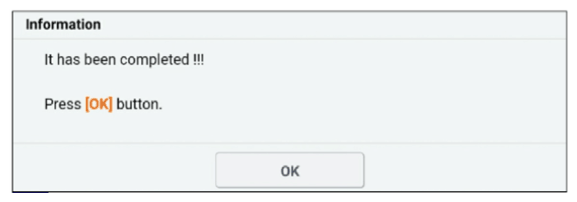

G13333906Courtesy of KIA MOTORS AMERICA, INC.
