System Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures 1 to 5 below

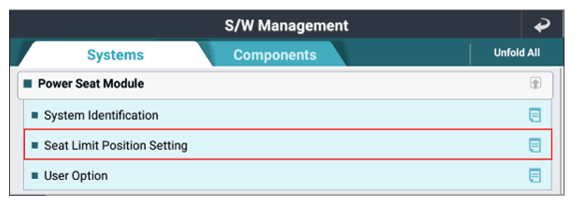

G13336669Courtesy of KIA MOTORS AMERICA, INC.

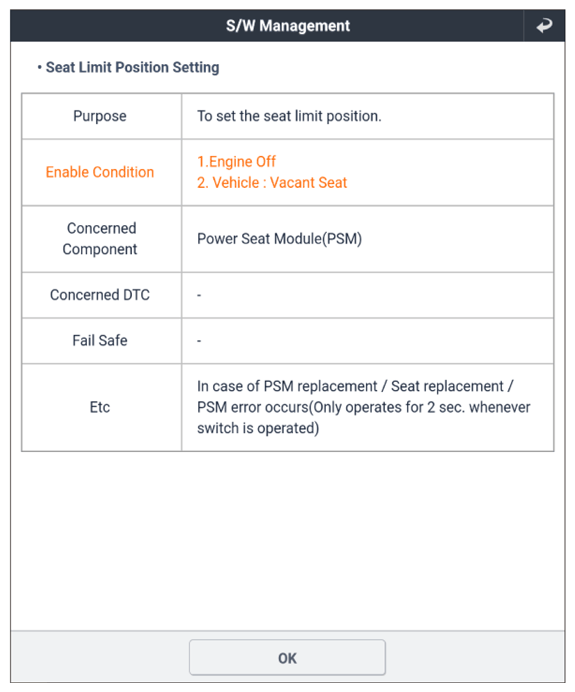

G13336670Courtesy of KIA MOTORS AMERICA, INC.

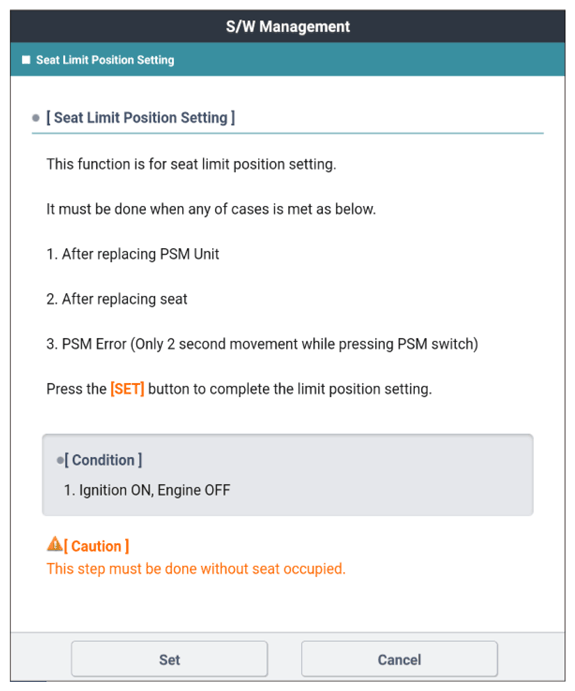

G13336671Courtesy of KIA MOTORS AMERICA, INC.

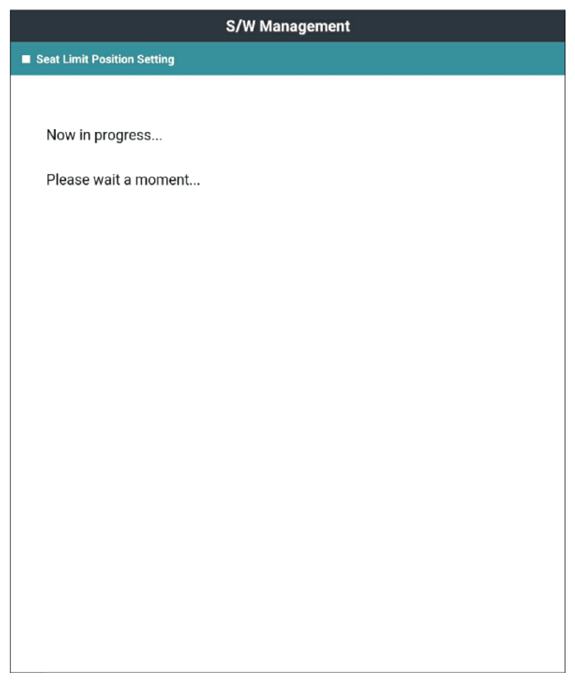

G13336672Courtesy of KIA MOTORS AMERICA, INC.

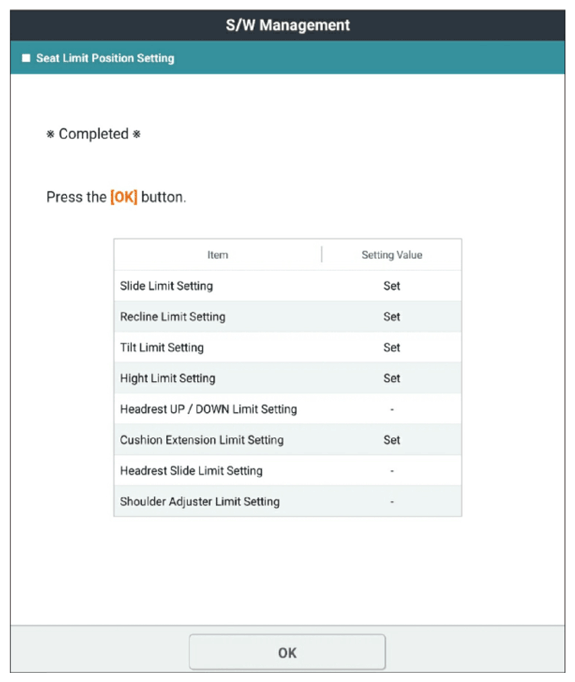

G13336673Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
