Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the front pillar trim.

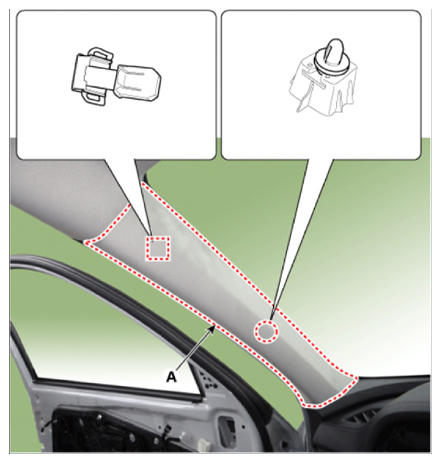

To remove the front pillar trim, the fastener remover (A) below must be used.

Courtesy of KIA MOTORS AMERICA, INC.

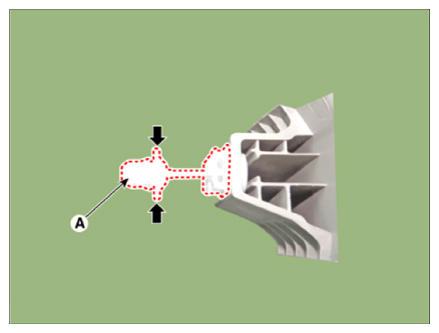

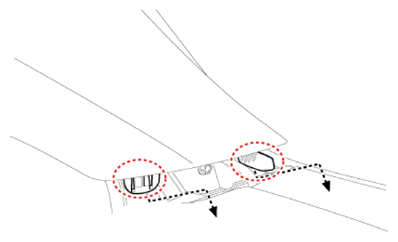

After slightly lifting up the front pillar trim and putting the tool in, remove the mounting clip (A) by pulling it.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Because it is installed to protect the driver from the separation of trim parts when airbag is deployed, be sure to use the new fixing clip.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Replace any damaged clips (or pin - type retainers).

Courtesy of KIA MOTORS AMERICA, INC.

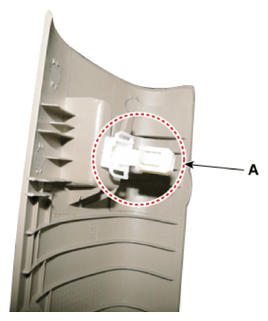

Because it is installed to protect the driver from the separation of trim parts when airbag is deployed, be sure to use the new fixing clip.

Courtesy of KIA MOTORS AMERICA, INC.

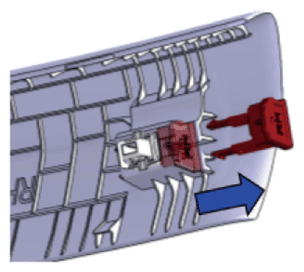

When use new fixing clip, disassemble cover by pushing hook as follows (if cover is damaged, replace new one).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
