Home >> Kia >> 2021 >> Telluride EX, 4WD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Liftgate System >> Anti-Pinch Strip >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate side trim.

    (Refer to Body - "LIFTGATE TRIM ")

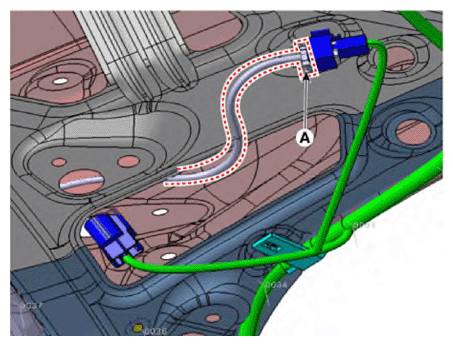

  3. Disconnect the anti-pinch strip connector (A).
    G13312367Courtesy of KIA MOTORS AMERICA, INC.

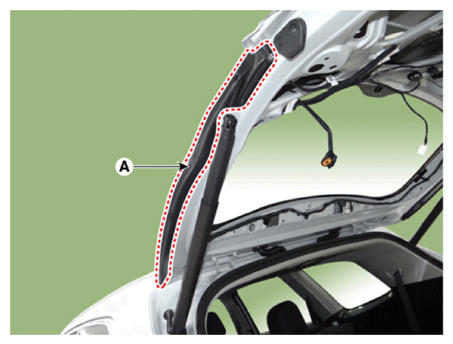

  4. Remove the anti-pinch strip (A).
G13312368Courtesy of KIA MOTORS AMERICA, INC.
