Home >> Kia >> 2021 >> Stinger GT2, RWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System - 3.3L >> Ignition Coil >> Troubleshooting >> Connector Assembly Status Test

Connector Assembly Status Test

  1. Remove the connector (A) and reinstall it.

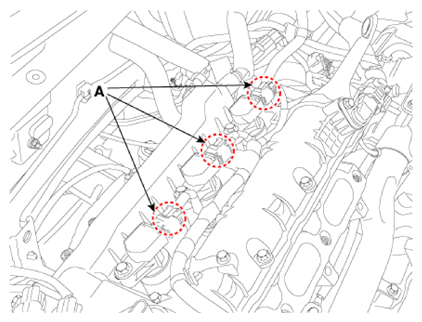

    G13427946Courtesy of KIA MOTORS AMERICA, INC.

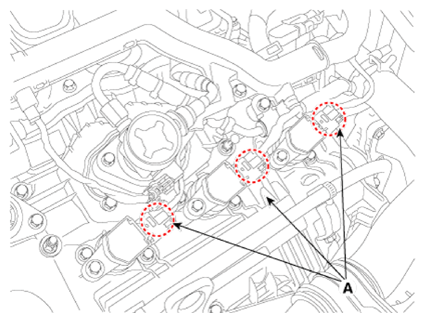

    G13427947Courtesy of KIA MOTORS AMERICA, INC.

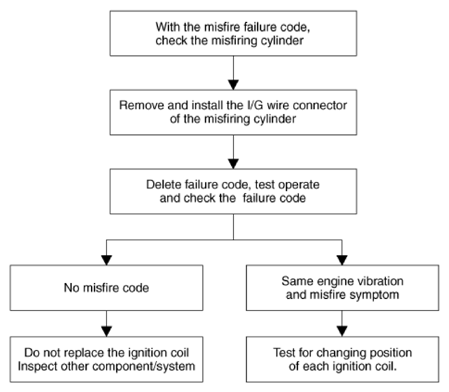

    G13427948Courtesy of KIA MOTORS AMERICA, INC.
