Repair Procedures: Removal

  1. Turn the ignition switch OFF.

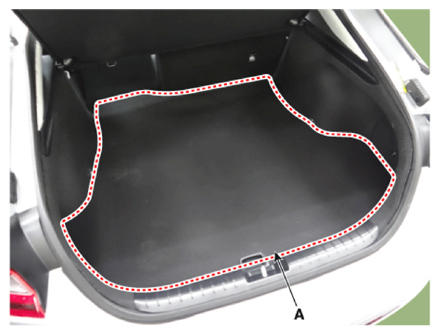

  2. Remove the luggage covering (A).
    G13428251Courtesy of KIA MOTORS AMERICA, INC.

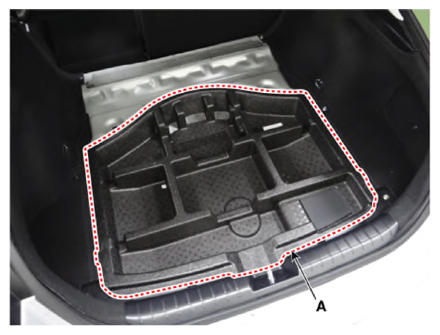

  3. Remove the luggage center tray (A).
    G13428252Courtesy of KIA MOTORS AMERICA, INC.

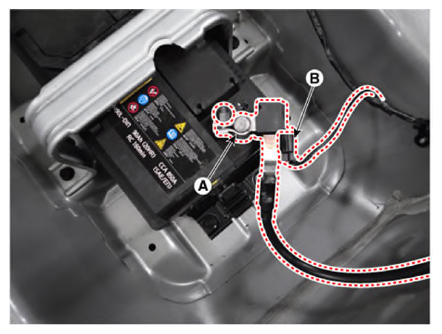

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G13428253Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the battery sensor by loosening the mounting bolts (C).
G13428254Courtesy of KIA MOTORS AMERICA, INC.
