SAS Calibration

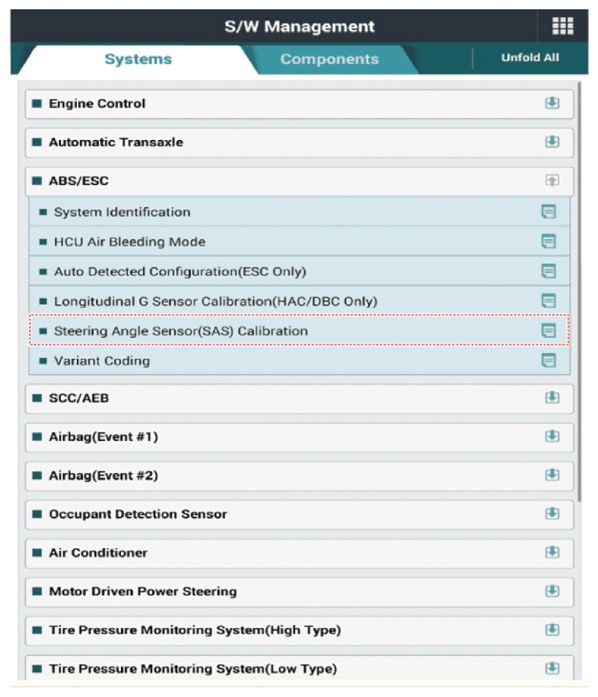

G13425116Courtesy of KIA MOTORS AMERICA, INC.

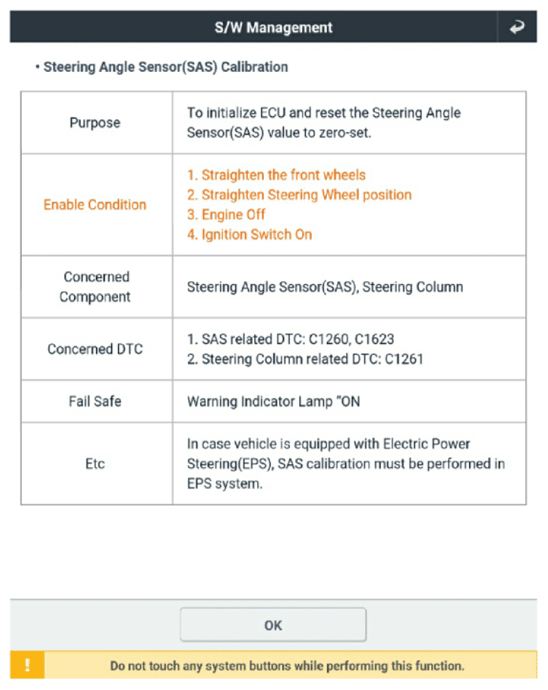

G13425117Courtesy of KIA MOTORS AMERICA, INC.

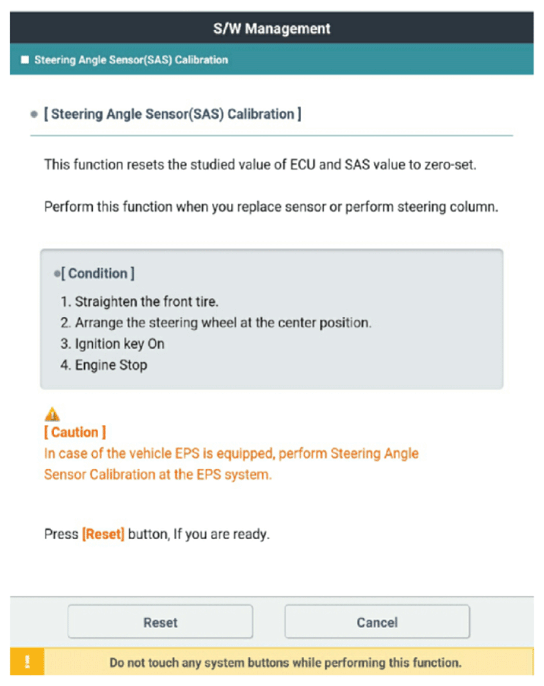

G13425118Courtesy of KIA MOTORS AMERICA, INC.
