Home >> Kia >> 2021 >> Stinger GT2, RWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Liftgate System >> Pinch Strip >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate trim.

    (Refer to Body - "TAIL GATE TRIM ")

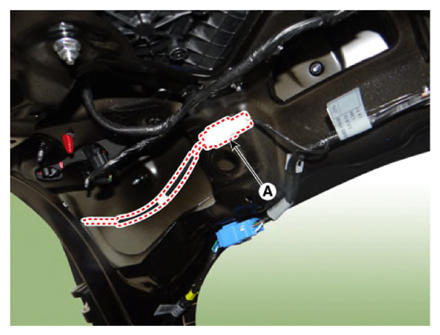

  3. Disconnect the anti-pinch strip connector (A).
    G13426746Courtesy of KIA MOTORS AMERICA, INC.

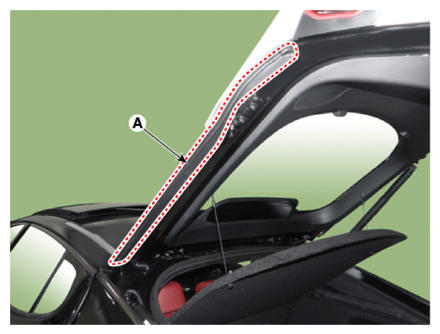

  4. Remove the anti-pinch strip (A) after removing the mounting clips.
    G13426747Courtesy of KIA MOTORS AMERICA, INC.
