Repair Procedures: Removal

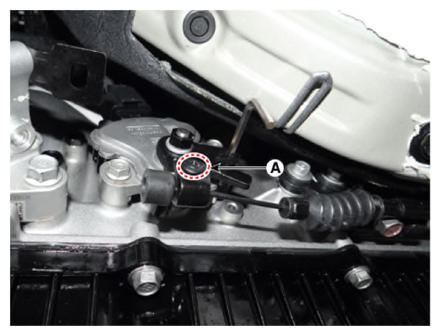

  1. Remove the parking release cable after loosening the fastener (A).
    G13428421Courtesy of KIA MOTORS AMERICA, INC.

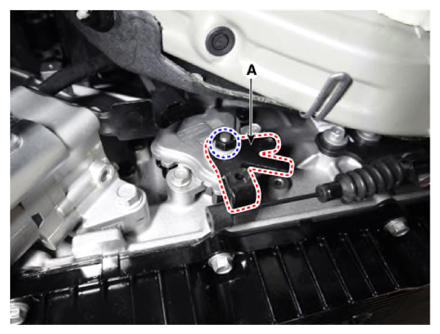

  2. Remove the parking release lever (A) after loosening the nut.
    G13428422Courtesy of KIA MOTORS AMERICA, INC.

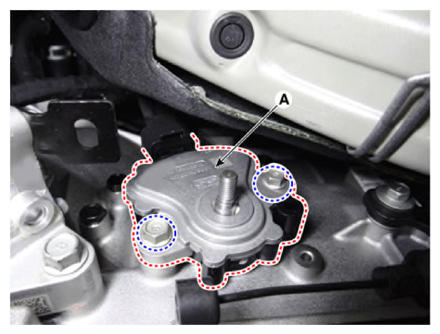

  3. Remove the parking switch (A) after loosening the bolts.
    G13428423Courtesy of KIA MOTORS AMERICA, INC.

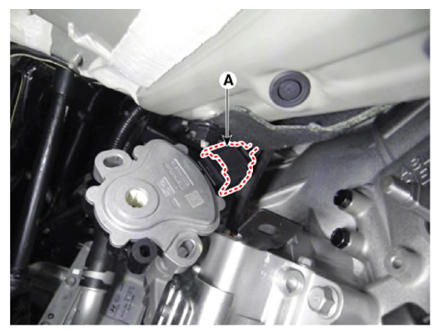

  4. Disconnect the parking switch connector (A).
G13428424Courtesy of KIA MOTORS AMERICA, INC.
