Repair Procedures: Removal

  1. Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.
  2. Remove the roof trim.

    (Refer to Body (Interior and Exterior) - "ROOF TRIM ASSEMBLY ")

  3. Disconnect the connector (A) from the curtain airbag module.

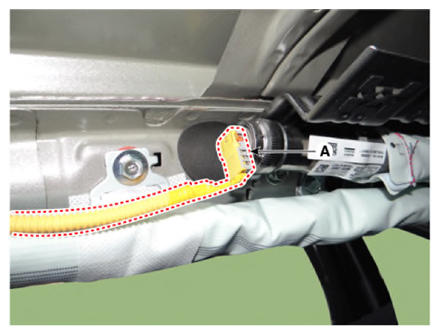

    G13424897Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the curtain airbag bolts and nuts and then remove the curtain airbag.

    Tightening torque

    Bolt: 7.7 - 11.7 N.m (0.79 - 1.2 kgf.m, 5.7 - 8.6 lb.ft)

    Nut: 3.8 - 5.8 N.m (0.39 - 0.6 kgf.m, 2.8 - 4.3 lb.ft)

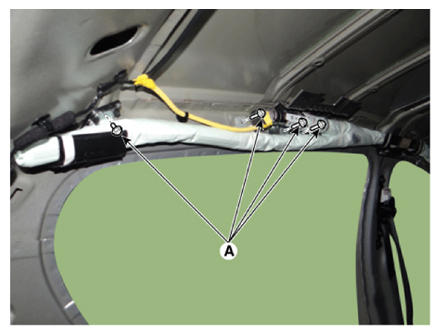

    G13424898Courtesy of KIA MOTORS AMERICA, INC.

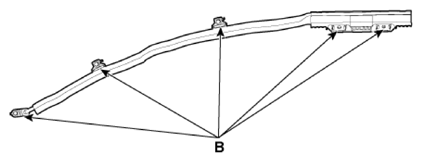

    G13424899Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Never twist the airbag module when installing it. If the module is twisted, airbag module may operate abnormally.
