Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

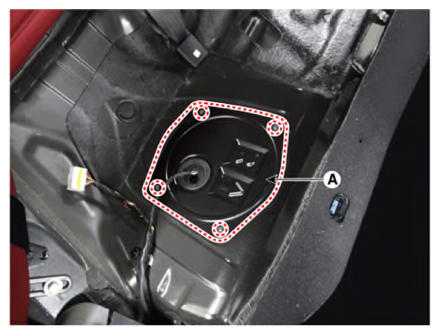

  4. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G13423701Courtesy of KIA MOTORS AMERICA, INC.

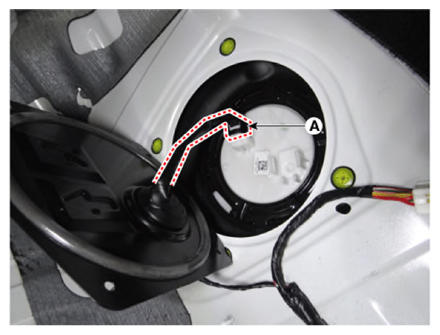

  5. Disconnect the sub fuel sender connector (A).
    G13423702Courtesy of KIA MOTORS AMERICA, INC.

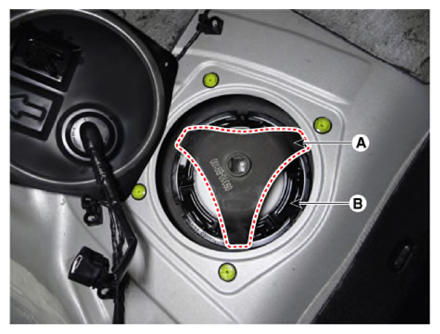

  6. Remove the locking ring (B) by using the special service tool (A) [No.: 09310-B8100].
    G13423703Courtesy of KIA MOTORS AMERICA, INC.

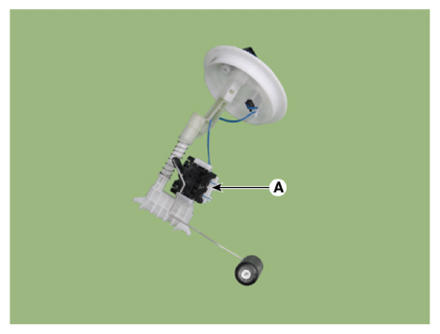

  7. Remove the sub fuel sender (A).
    G13423704Courtesy of KIA MOTORS AMERICA, INC.
