Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

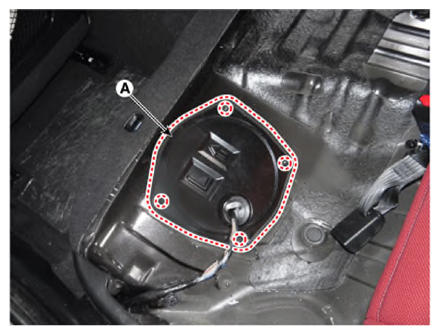

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G13423688Courtesy of KIA MOTORS AMERICA, INC.

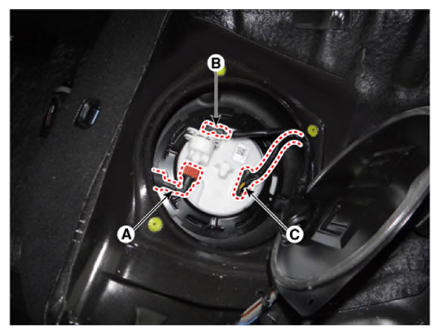

  5. Disconnect the fuel feed quick-connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel pump connector (C).
    G13423689Courtesy of KIA MOTORS AMERICA, INC.

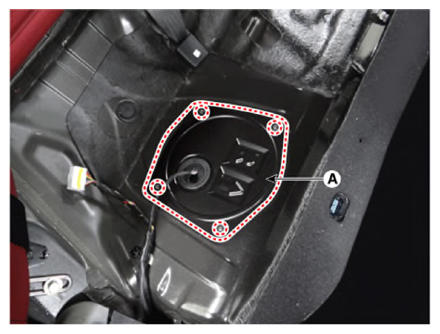

  8. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G13423690Courtesy of KIA MOTORS AMERICA, INC.

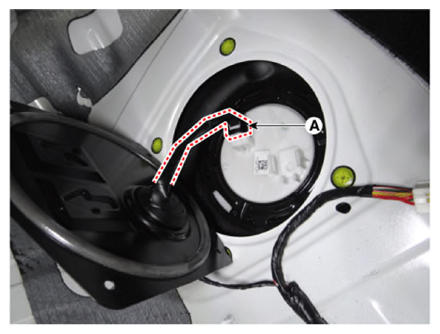

  9. Disconnect the sub fuel sender connector (A).
    G13423691Courtesy of KIA MOTORS AMERICA, INC.
  10. Lift the vehicle.
  11. Remove the center muffler assembly.

    (Refer to Engine Mechanical System - "MUFFLER ")

  12. Remove the propeller shaft assembly.

    (Refer to Driveshaft and Axle - "PROPELLER SHAFT ")

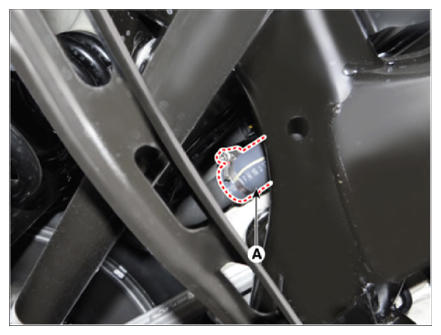

  13. Disconnect the fuel filler hose (A).
    G13423692Courtesy of KIA MOTORS AMERICA, INC.

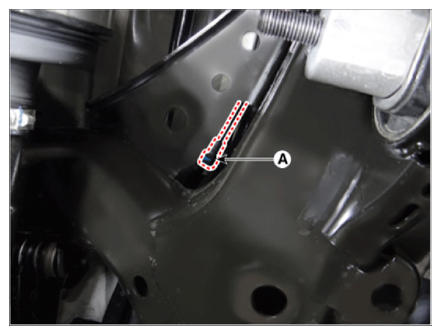

  14. Disconnect the ventilation (A).
    G13423693Courtesy of KIA MOTORS AMERICA, INC.

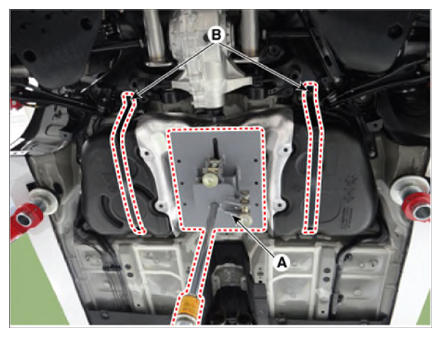

  15. Support the fuel tank with jack (A).
  16. Remove the fuel tank installation nut (B) and then loosen the fuel tank.
    G13423694Courtesy of KIA MOTORS AMERICA, INC.

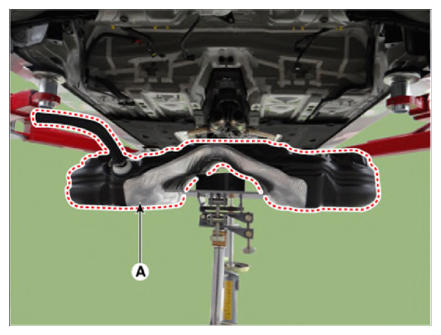

  17. Remove the fuel tank (A).
    G13423695Courtesy of KIA MOTORS AMERICA, INC.
