Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the intake manifold.

    (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

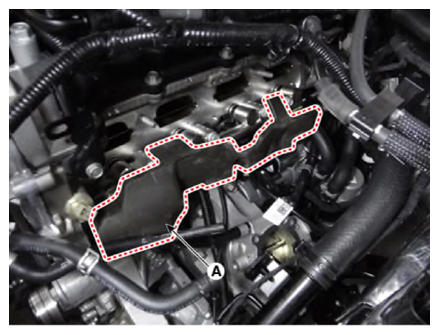

  4. Remove the delivery pipe foam (A).
    G13423738Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the cowl top cover assembly.

    (Refer to Body (Interior and Exterior) -  COWL TOP COVER  ")

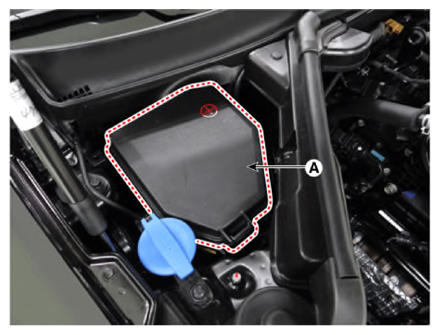

  6. Remove the engine box cover (A).
    G13423739Courtesy of KIA MOTORS AMERICA, INC.

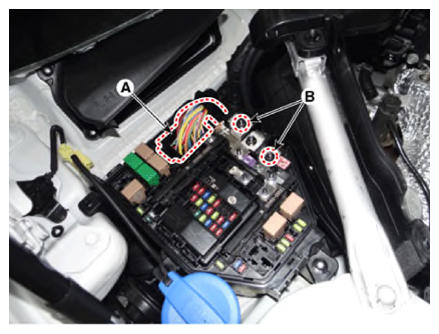

  7. Disconnect the front control connector (A).
  8. Remove the groune terminal nuts (B).
    G13423740Courtesy of KIA MOTORS AMERICA, INC.

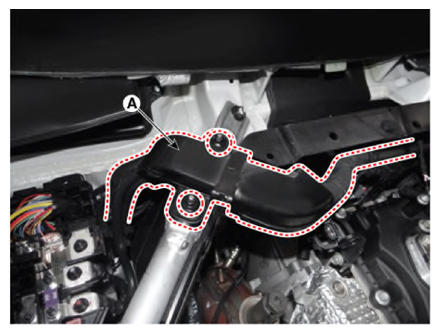

  9. Remove the wiring protector (A).
    G13423741Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the high pressure fuel pipe.

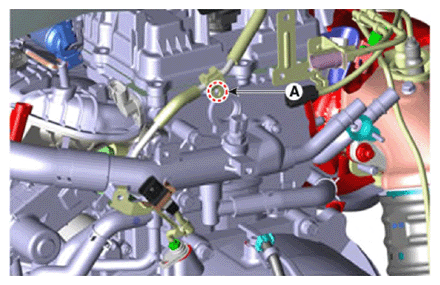

    1. Remove the high pressure fuel pipe mounting bolt (A).
      G13423742Courtesy of KIA MOTORS AMERICA, INC.

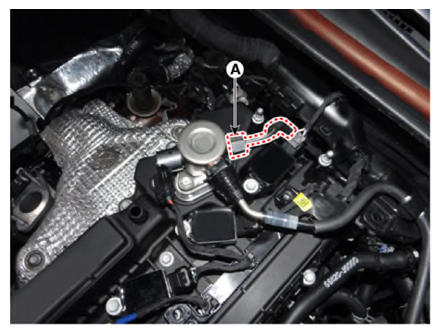

    2. Remove the high pressure fuel pipe flange nut (A).
      G13423743Courtesy of KIA MOTORS AMERICA, INC.

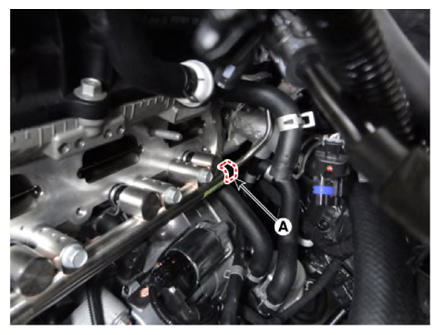

      G13423744Courtesy of KIA MOTORS AMERICA, INC.

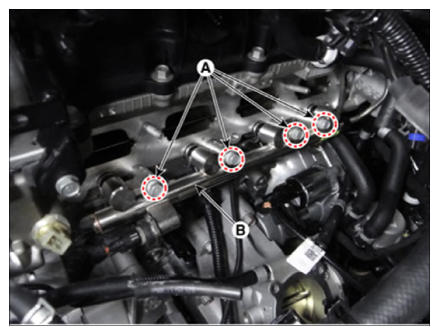

  11. Remove the mounting bolts (A), and then remove the delivery pipe & injector assembly from the engine.
    G13423745Courtesy of KIA MOTORS AMERICA, INC.

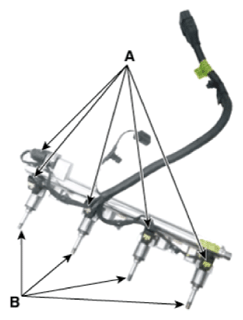

  12. Disconnect the injector & rail pressure sensor connector (A).
  13. Remove the injector (B) from the delivery pipe.
    G13423746Courtesy of KIA MOTORS AMERICA, INC.
