Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate trim.

    (Refer to Body - "TAIL GATE TRIM ")

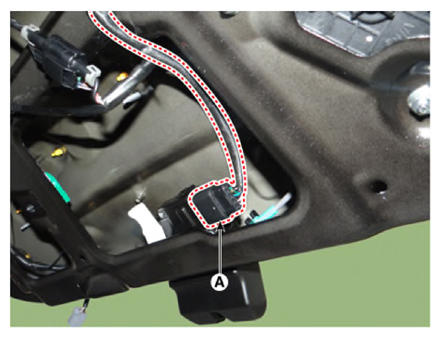

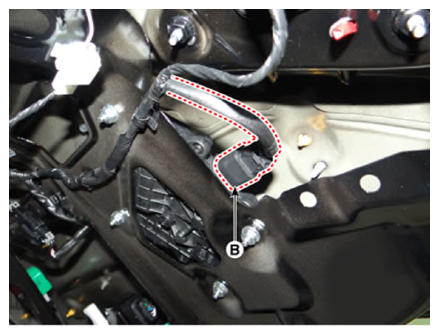

  3. Disconnect the power liftgate latch connector (A) and power closing unit connector (B).
    G13426741Courtesy of KIA MOTORS AMERICA, INC.
    G13426742Courtesy of KIA MOTORS AMERICA, INC.

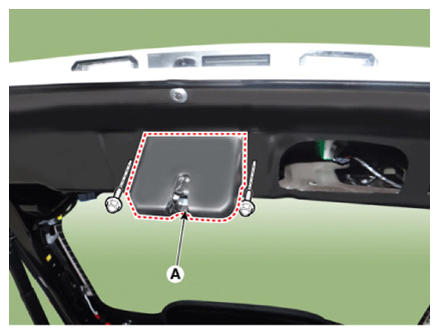

  4. Loosen the power liftgate latch (A) mounting bolts.
    G13426743Courtesy of KIA MOTORS AMERICA, INC.

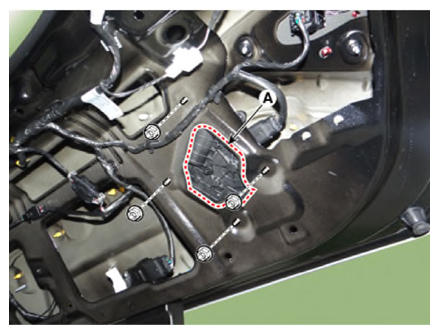

  5. Loosen the power closing unit (A) mounting nuts.
    G13426744Courtesy of KIA MOTORS AMERICA, INC.

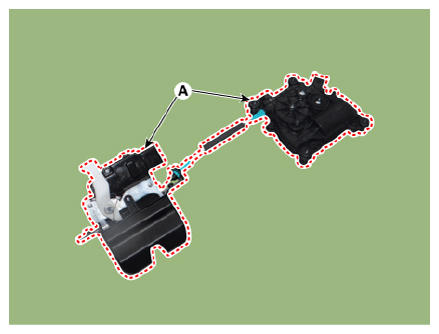

  6. Remove the power liftgate latch & power closing unit (A).
    G13426745Courtesy of KIA MOTORS AMERICA, INC.
