Connector Pin Information

No. Connector A Connector B
1 Battery (+) Rear door left speaker (+)
2 Battery (+) Rear door left speaker (-)
3 Battery (+) Rear door right speaker (+)
4 Battery (+) Rear door right speaker (-)
5 - -
6 Multimedia-CAN (High) -
7 Multimedia-CAN (Low) -
8 ACC -
9 Navigation voice (+) -
10 - -
11 - -
12 Front door left speaker (+) -
13 Front door left speaker (-) -
14 Front door left speaker (+) -
15 Front door left speaker (-) -
16 Ground Sub woofer speaker 1 (+)
17 Ground Sub woofer speaker 1 (-)
18 Ground Sub woofer speaker 2 (+)
19 Ground Sub woofer speaker 2 (-)
20 SPDIF (+) -
21 SPDIF (-) -
22 SPDIF (Ground) -
23 Navigation voice (-) -
24 IGN1 -
25 Crash pad center speaker (+) -
26 Crash pad center speaker (-) -
27 - -
28 - -

[Harman]

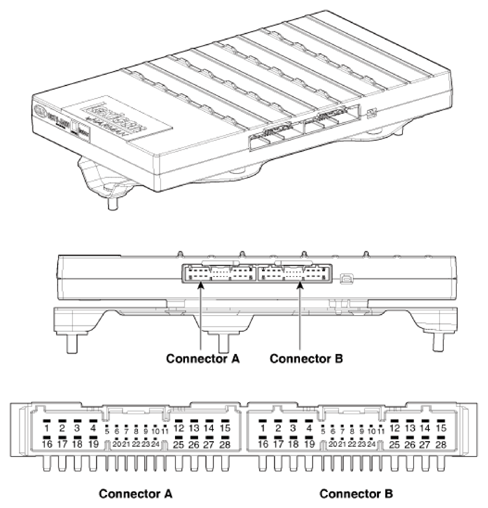

G13426032Courtesy of KIA MOTORS AMERICA, INC.
