Repair Procedures: Installation

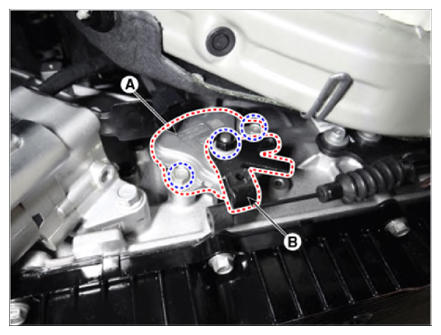

Install the parking switch (A) and parking release lever (B).

NOTE: Lightly tighten the bolts and nut so that necessary adjustments can be made.

Courtesy of KIA MOTORS AMERICA, INC.

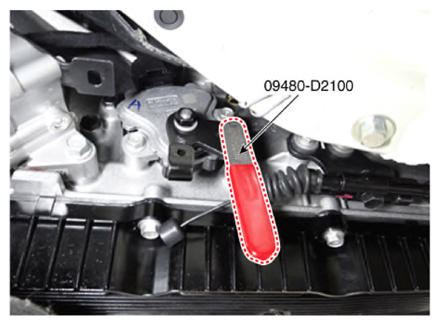

Align the hole in the parking release lever with the "P" position hole of the parking switch and then insert the SST parking switch guide pin (09480-D2100).

Courtesy of KIA MOTORS AMERICA, INC.

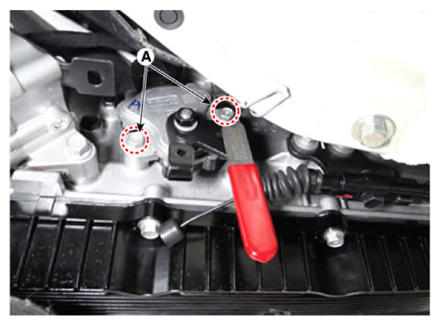

Tighten the parking switch mounting bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

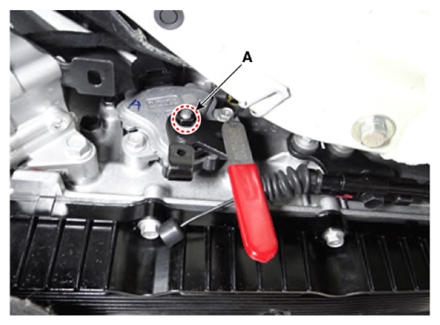

Tighten the parking release lever mounting nut (A).
Tightening torque:

13.7 - 17.7 N.m (1.4 - 1.8 kgf.m, 10.1 - 13.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove ths SST (09480-D2100)

Courtesy of KIA MOTORS AMERICA, INC.

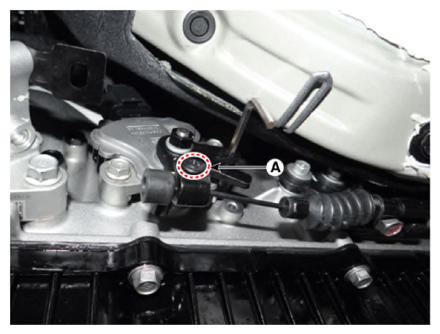

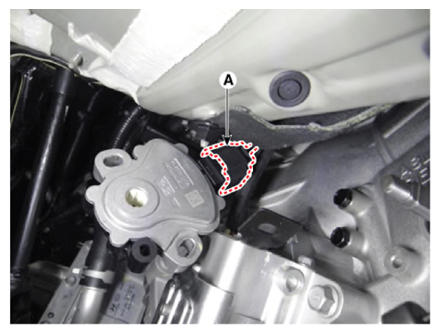

Tighten the fastener (A) after installing the parking release cable.
NOTE: The existing fastener (A) must be replaced with a new one. (Do not reuse it.)
