Repair Procedures: Removal

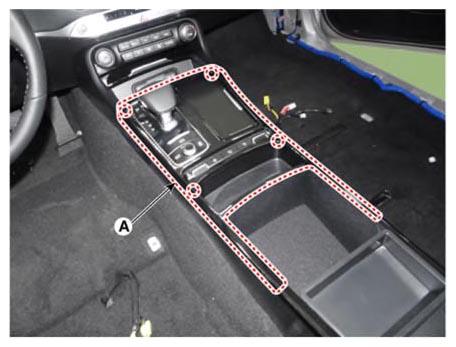

Remove the upper console cover (A) using the remover.

Courtesy of KIA MOTORS AMERICA, INC.

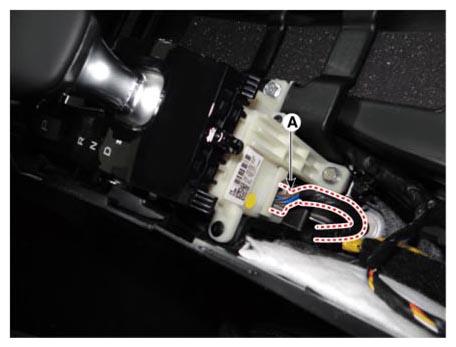

Disconnect the main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

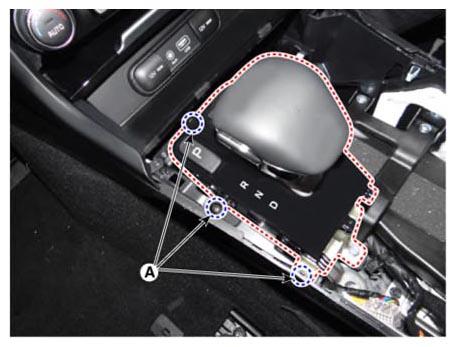

Loosen the E-shifter mounting screws (A).

Courtesy of KIA MOTORS AMERICA, INC.

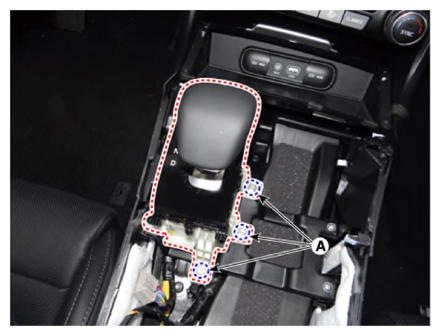

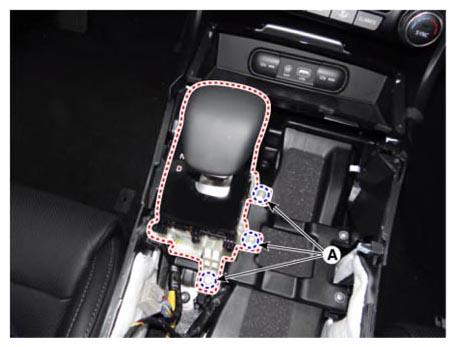

Loosen the E-shifter mounting bolts (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
