Kia
>>
2021
>>
Stinger GT-Line, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Rear Power Window Switch
Rear Power Window Switch

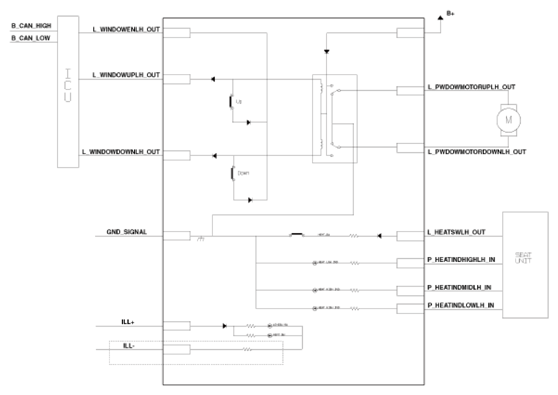

[Seat Warmer Type]
Courtesy of KIA MOTORS AMERICA, INC.

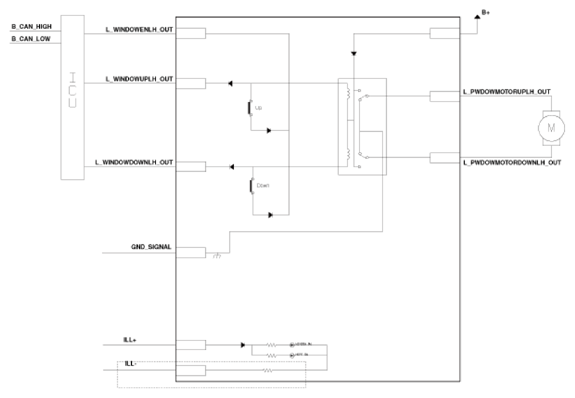

[Non-Seat Warmer Type]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
