Home >> Kia >> 2021 >> Stinger GT-Line, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Assist Power Window Switch

Assist Power Window Switch

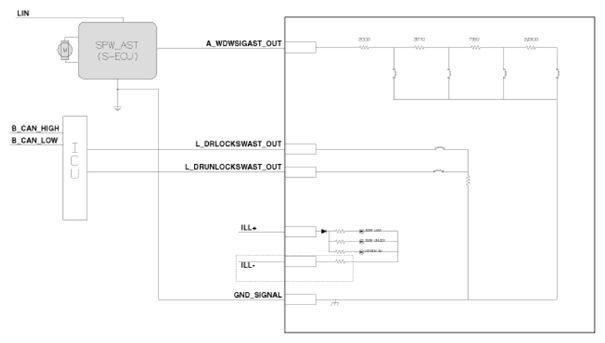

[Door Lock Type]

G13426765

Courtesy of KIA MOTORS AMERICA, INC.

[Non-Door Lock Type]

G13426766

Courtesy of KIA MOTORS AMERICA, INC.
