Front Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

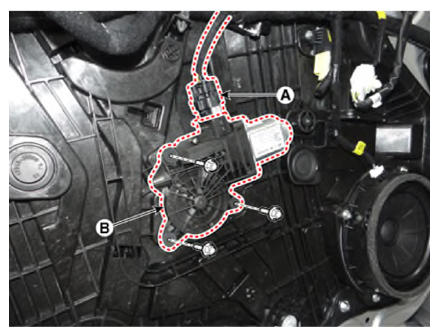

  3. Disconnect the front power window motor connector (A).
  4. Remove the front power window motor (B) after loosening the mounting bolts.
    G13426756Courtesy of KIA MOTORS AMERICA, INC.
