[Standard Window Motor]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

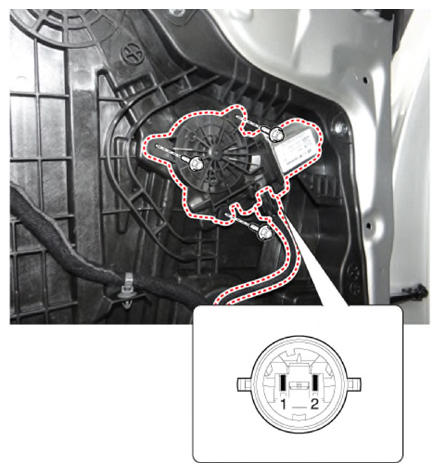

  3. Disconnect the motor connector (A) from the motor.
    G13426758Courtesy of KIA MOTORS AMERICA, INC.

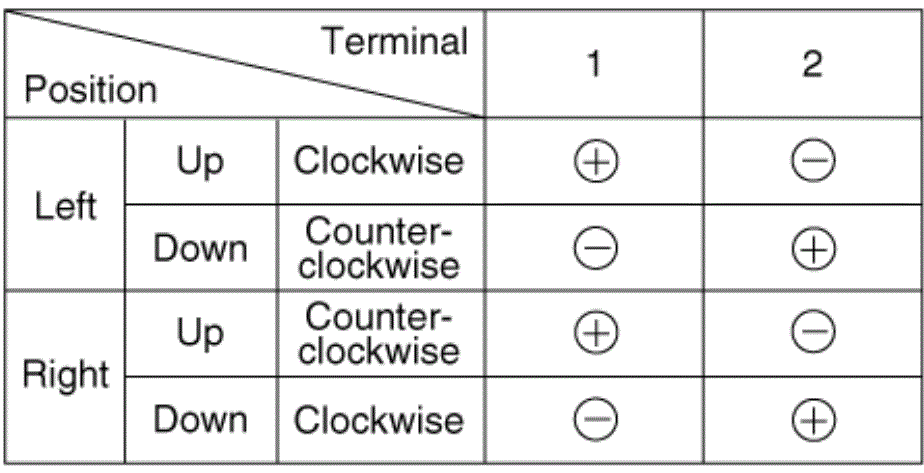

  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
    G13426759Courtesy of KIA MOTORS AMERICA, INC.
