Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

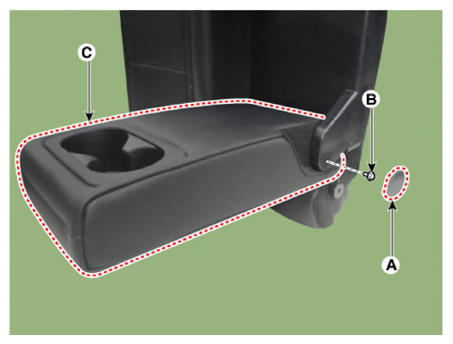

Remove the rear back armrest (C) after removing the cap (A) and then loosening the bolt (B).

Courtesy of KIA MOTORS AMERICA, INC.

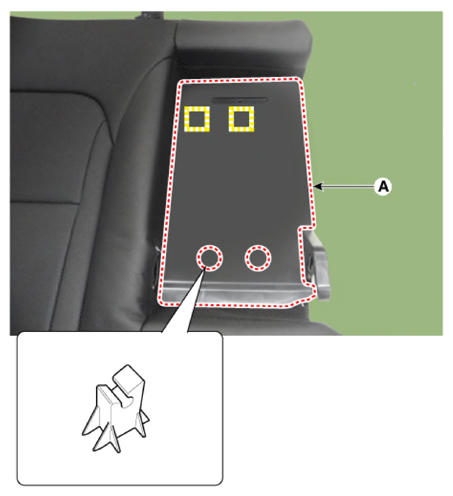

Remove the rear seat armrest back board (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damage clips.
