Repair Procedures: Inspection

  1. Disconnector the negative (-) battery terminal.
  2. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

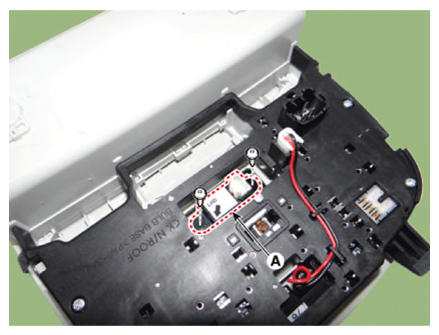

  3. Remove the hands free mic (A) after loosening the mounting screws.
    G13426291Courtesy of KIA MOTORS AMERICA, INC.

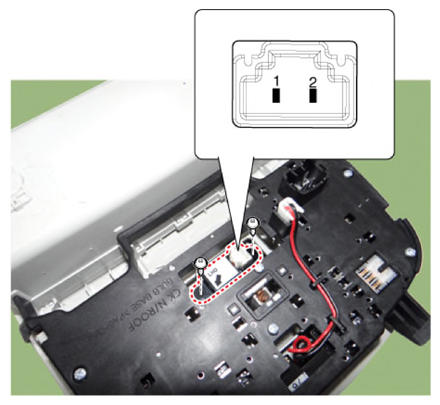

  4. Check tshe continuity of between terminals.
    G13426292Courtesy of KIA MOTORS AMERICA, INC.

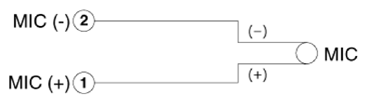

    G13426293Courtesy of KIA MOTORS AMERICA, INC.
