Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater & A/C control unit.

    (Refer to Heating, Ventilation And Air Conditioning - "HEATER & A/C CONTROL UNIT (DATC) ")

  3. Remove the crash pad passenger side panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

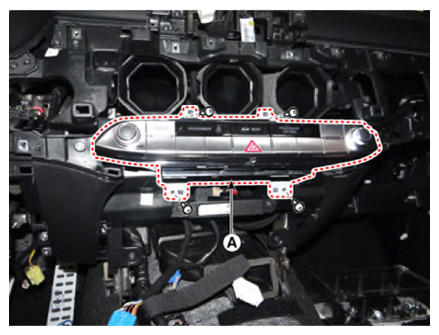

  4. Remove the AVN head unit (A) after loosening the mounting screws.
    G13426221Courtesy of KIA MOTORS AMERICA, INC.

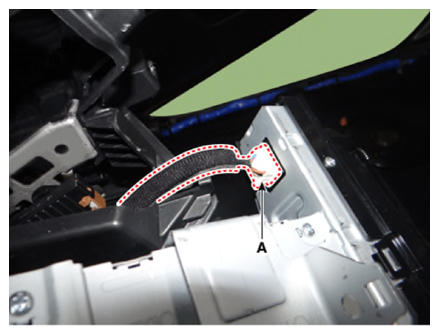

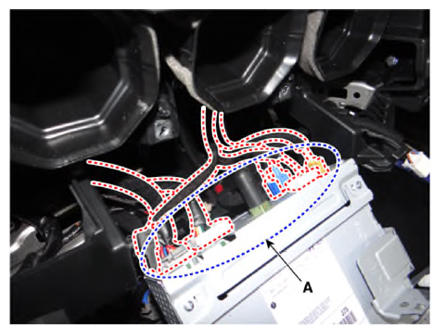

  5. Remove the AVN head unit after disconnecting the connectors and antenna cable (A).
    G13426222Courtesy of KIA MOTORS AMERICA, INC.
    G13426223Courtesy of KIA MOTORS AMERICA, INC.
