Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

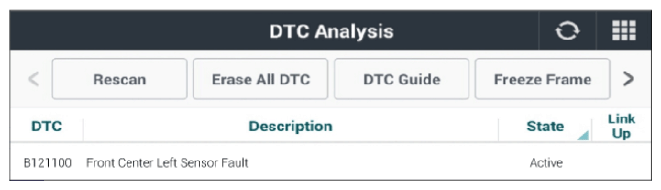

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault

Fault is intermittent caused by poor contact in "BCM" or Parking Assist System (PAS) Sensor
- Front Center Left Sensor's connector or was repaired and "BCM" memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
