Removal And Installation
- Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

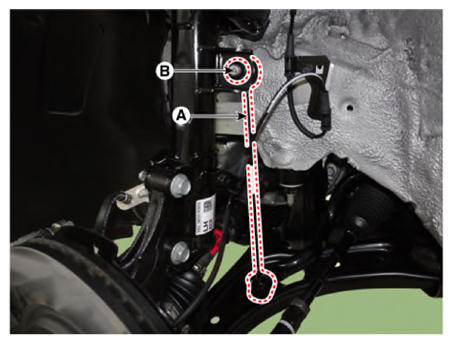

- Disconnect the stabilizer bar link (A) from the front strut assembly by loosening the nut (B).
Tightening torque:
98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)
NOTE:- When loosening the nut (A), fix the outer hexagon of stabilizer bar link.
- Be careful not to damage the stabilizer link boots.

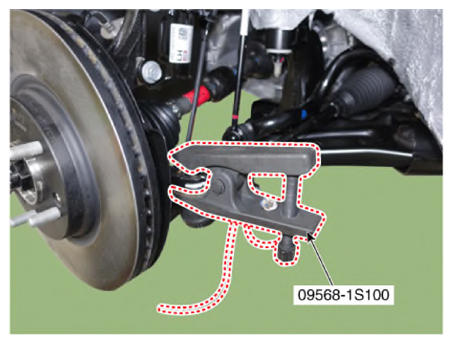

- Disconnect the tie rod end ball joint from the knuckle by using the SST (09568-1S100).

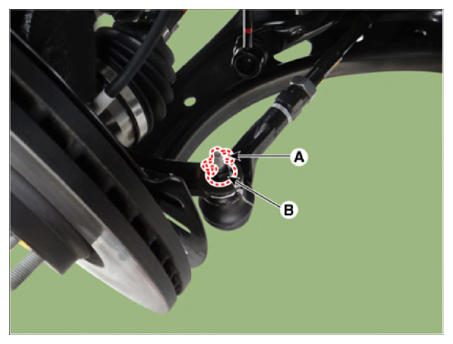

- Remove the snap pin (A).
- Remove the lock nut (B).
Tightening torque:
34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb.ft)
NOTE: Do not reuse lock nut. - Disconnect the tie rod end ball joint from the knuckle by using the SST (09568-1S100).

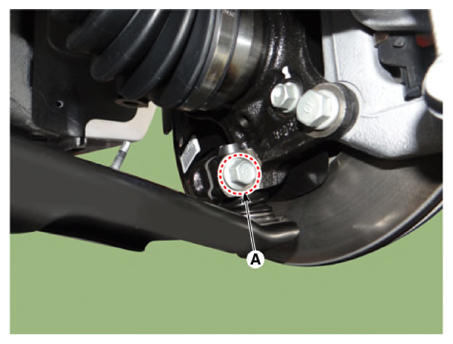

- Loosen the lower arm mounting bolt and nut (A).
Tightening torque:
58.8 - 70.6 N.m (6.0 - 7.2 kgf.m, 43.4 - 52.1 lb.ft)
- Detach the front lower arm from the front knuckle using the SST (0K545-A9100).

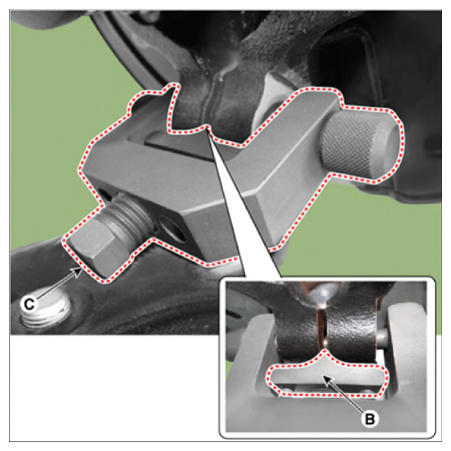

- After removing bolts from the front knuckle, install and tighten the sub body bolt (A).
- Insert the sub body (B) between the front knuckle and the sub body bolt.
- Tighten the bolt (C) sub body to broaden the gap of the front knuckle.

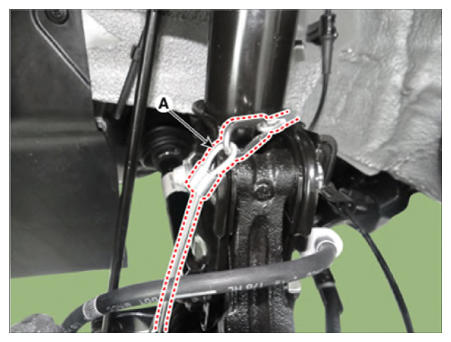

- Install the safe wire (A).

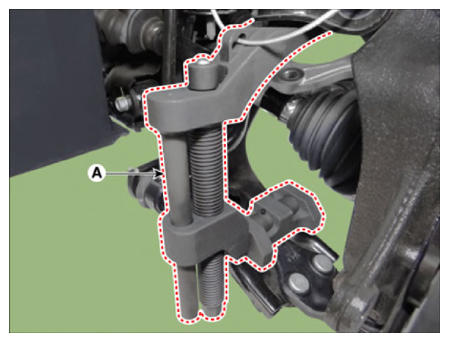

- Install the main body (A) between the front strut and the lower arm.

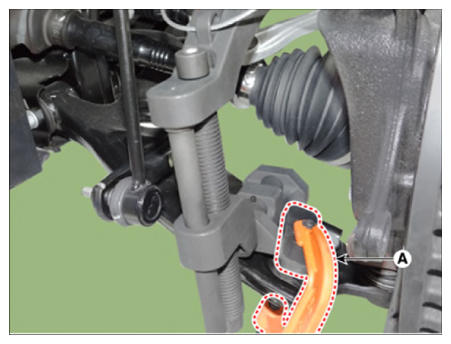

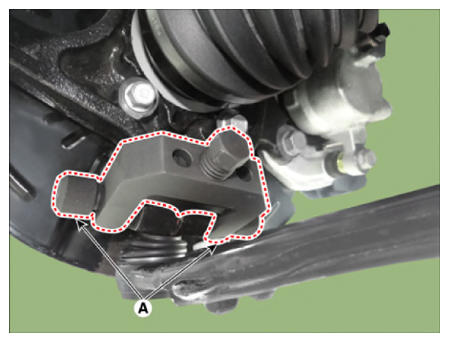

- To avoid the main body coming off, install a fixing clamp (A) beside the main body.

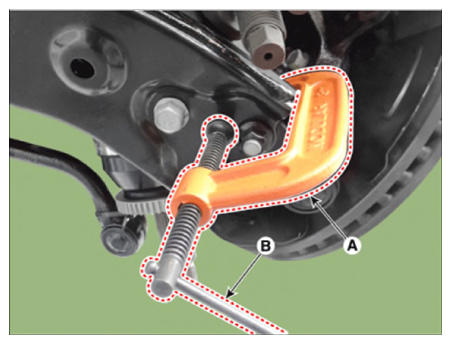

- After installing the body (A), rotate the handle (B) clockwise until the clamp is fixed on the lower arm.

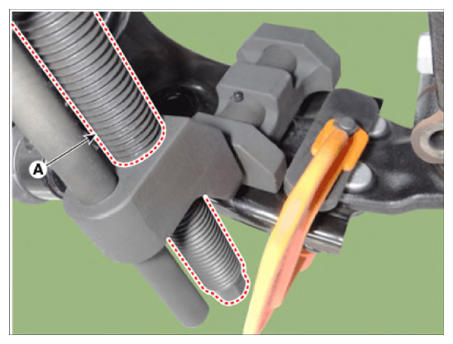

- Tighten the main body bolt (A) slowly and remove the lower arm from the front knuckle.
- After removing bolts from the front knuckle, install and tighten the sub body bolt (A).

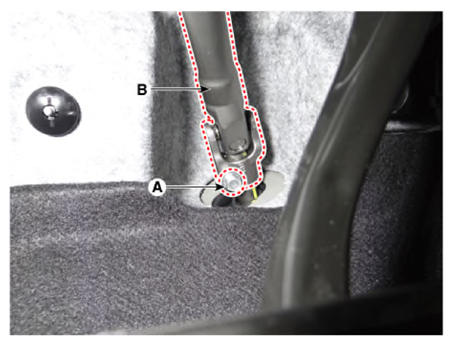

- Loosen the bolt (A) and then remove the universal joint (B).
Tightening torque:
32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)
NOTE:- Do not reuse the bolt.
- Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.

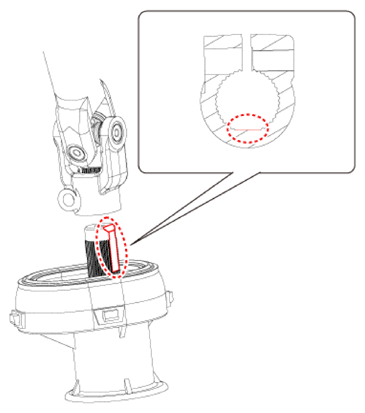

- Assemble so that the universal joint hole is inserted matching the cut surface of the pinion shaft.

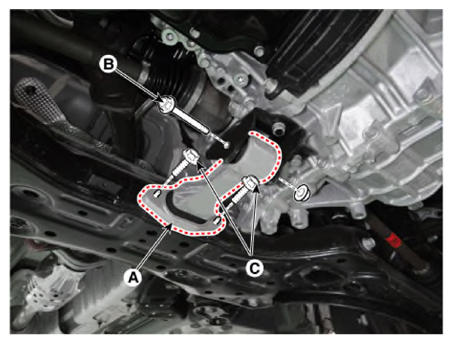

- Remove the roll rod bracket (A).
Tightening torque:
Bolt (B):
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)
Bolt (C):
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

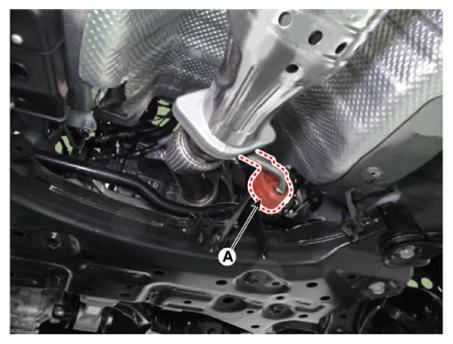

- Disconnect the front muffler rubber hanger (A).

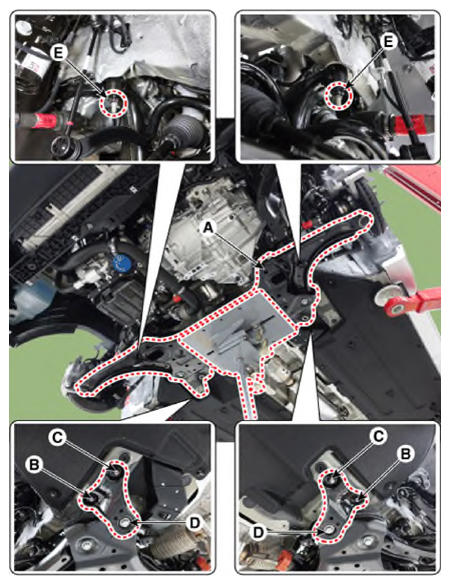

- Support the sub frame (A) with a jack and then loosen the sub frame bolts and nuts.
Tightening torque:
Bolts (B), Nuts (C): 44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)
Bolts (D), Nuts (E): 176.6 - 196.2 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 lb.ft)

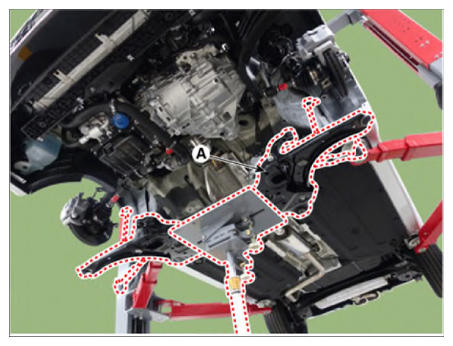

- Remove the sub frame (A).

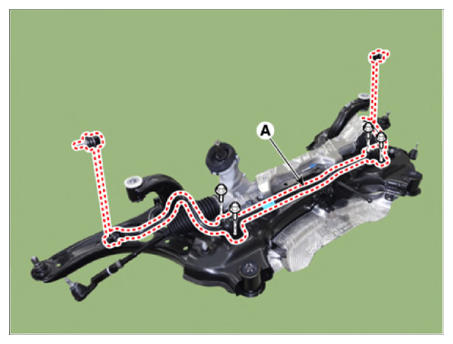

- Remove the stabilizer bar (A) by loosening the bolts.
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

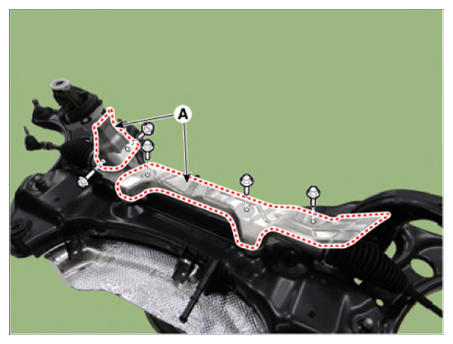

- Remove the heat protector (A) by loosening the bolts.
Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

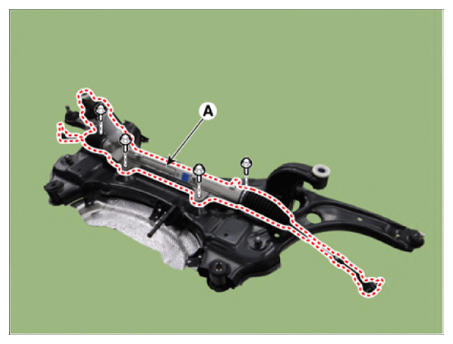

- Remove the steering gear box (A) by loosening the bolts.
Tightening torque
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)
- Install in the reverse order of removal.
- Check the wheel alignment.
(Refer to Suspension System - "ALIGNMENT ")
