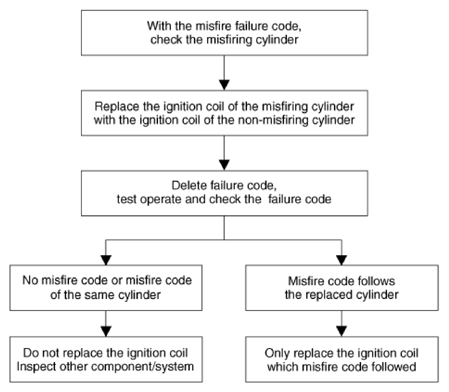

Test By Changing Position Of Each Ignition Coil

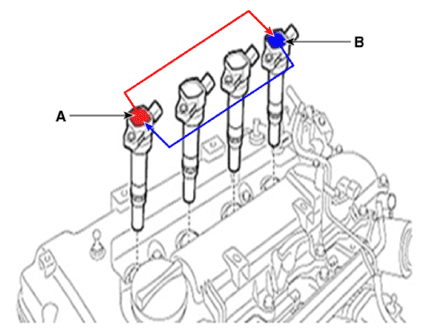

A: Ignition coil with misfire code
B: Ignition coil without misfire code
NOTE:
Do not move with spark plug at the same time (move the ignition coil only)
