Home >> Kia >> 2021 >> Soul X Line >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Main Power Window Switch >> [Non-Safety Power Window Switch]

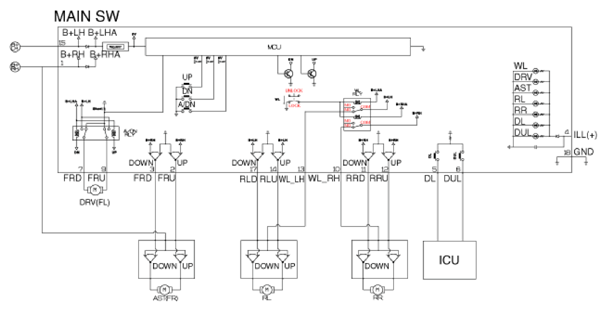

[Non-Safety Power Window Switch]

G13282754Courtesy of KIA MOTORS AMERICA, INC.
