Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
• Take care not to bend or scratch the trim and panels.

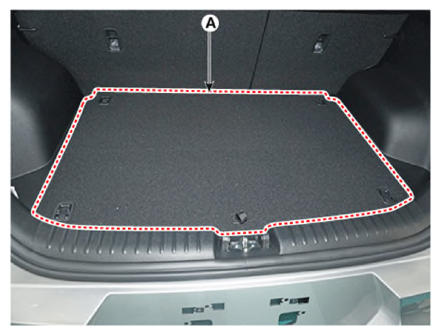

1. Remove the luggage covering board (A).

   Courtesy of KIA MOTORS AMERICA, INC.

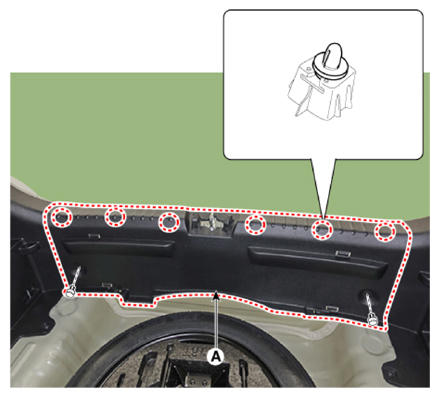

2. Loosen the mounting clips and remove the rear transverse trim (A).

   Courtesy of KIA MOTORS AMERICA, INC.

3. To install, reverse removal procedure.

   Information

   Replace any damaged clips (or pin-type retainers).
