Interior Antenna 2

  1. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

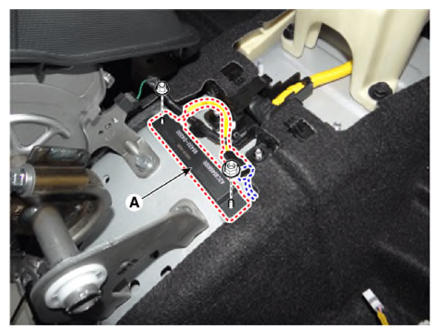

  2. Remove the interior antenna 2 (A) by loosening the nuts after disconnecting the connector.
    G13282848Courtesy of KIA MOTORS AMERICA, INC.
