Repair Procedures: Removal

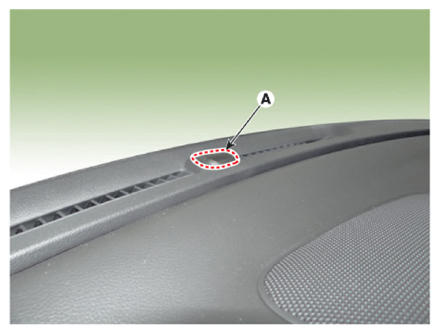

  1. Remove the auto light sensor (A) from the main crash pad.
    G13282314Courtesy of KIA MOTORS AMERICA, INC.

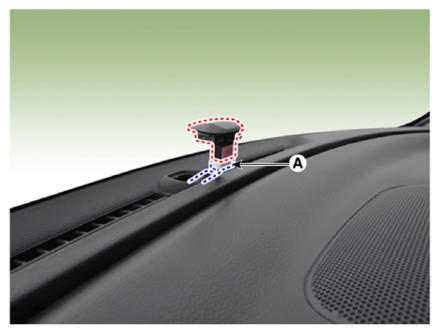

  2. Disconnect the connector (A) from the auto light sensor.
G13282315Courtesy of KIA MOTORS AMERICA, INC.
