Circuit Inspection

G13291471Courtesy of KIA MOTORS AMERICA, INC.

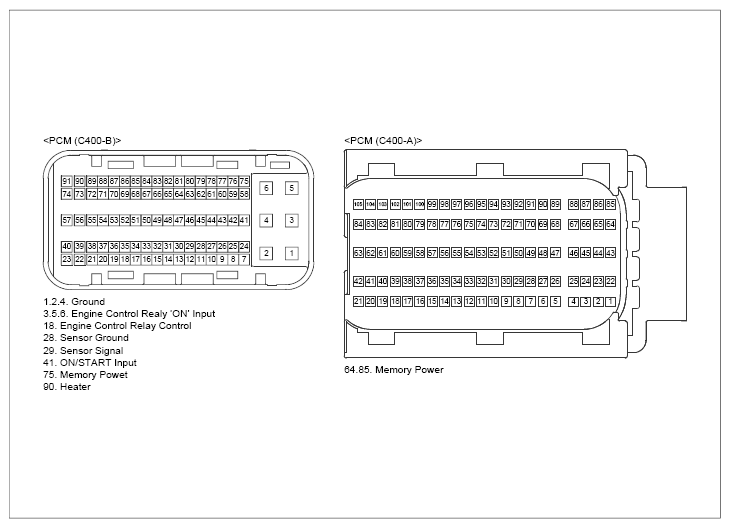

G13291472Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect HO2S (Bank1, Sensor2) connector.
  3. Ignition "ON".
 HO2S (Bank1, Sensor2) connector 3 (power) Chassis ground - Approx. 12V
HO2S (Bank1, Sensor2) connector 4 (heater) Chassis ground - Approx. 2.5V

Good

  1. Go to "Component Inspection " procedure.

No Good

  1. Repair open or short in circuit and then go to "Verification of Repair " procedure.
