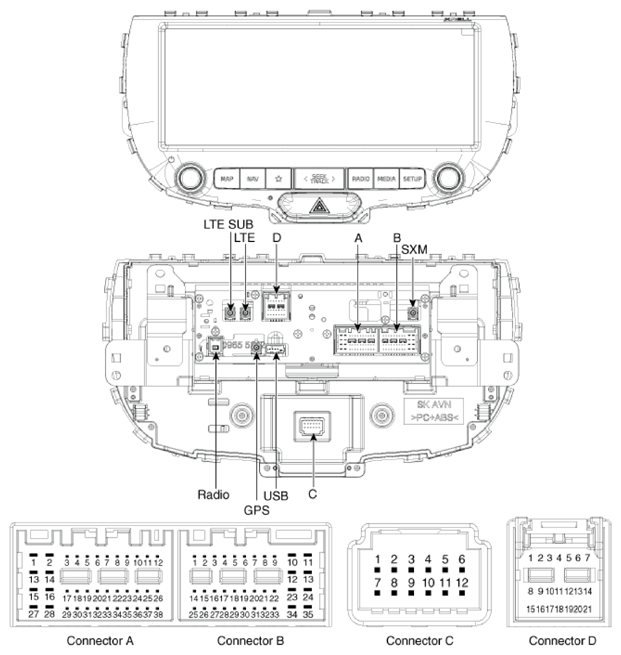

AVN Head Unit

G13282322

Courtesy of KIA MOTORS AMERICA, INC.

Function
Pin	Connector A		Connector B
Pin	External Amplifier	Internal Amplifier	Connector B
1	-	Rear door left speaker (+)	-
2	-	Rear door left speaker (-)	MIC (+)
3	Amplifier navigation voice (+)	-	-
4	Amplifier_SPDIF (High)	-	-
5	-		Antenna_Power
6	RVM Camera: Power		Illumination (+)
7	RVM Camera: Video		MM-CAN_High
8	-		-
9	-		-
10	-		Battery (+)
11	DTC		Battery (+)
12	Steering wheel_key		Ground
13	-	Left front door speaker (+)	Ground
14	-	Left front door speaker (-)	-
15	-	Left front door speaker (-)	MIC (-)
16	-	Left front door speaker (+)	-
17	Amplifier navigation voice (-)	-	MT: Neutral switch/AT: -
18	Amplifier SPDIF (Low)	-	-
19	Amplifier SPDIF (Ground)	-	Illumination (-)
20	RVM Camera: Power ground		MM-CAN_Low
21	RVM Camera: Video ground		-
22	-		ACC
23	-		-
24	-		-
25	-		-
26	Steering wheel key_Ground		-
27	-	Rear door right speaker (-)	-
28	-	Rear door right speaker (+)	-
29	-		-
30	-		-
31	-		-
32	-		IGN1
33	RVM Camera: Shield ground		-
34	-		-
35	-		-
36	-
37	-
38	Vehicle Speed

Pin	Function
Pin	Connector C	Connector D
1	Hazard indicator	-
2	Battery (+)	I-CAN (High)
3	Door lock indicator	-
4	-	-
5	Passenger airbag on	-
6	IGN1	-
7	Hazard mode	-
8	Hazard ground	-
9	Door lock	I-CAN (Low)
10	Door lock ground	-
11	Passenger airbag off	-
12	-	-
13		-
14		-
15		-
16		MTS
17		-
18		-
19		-
20		-
21		-

SXM antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	SXM
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground

Radio antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Signal
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground

USB connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	USB_VCC
	2	USB data_Low
	3	USB data_High
	4	USB_Ground

GPS antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Signal
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground

LTE main antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Signal
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground

LTE sub antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Signal
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground
