Component Inspection

Inspection Condition	Inspection Procedure	Reference

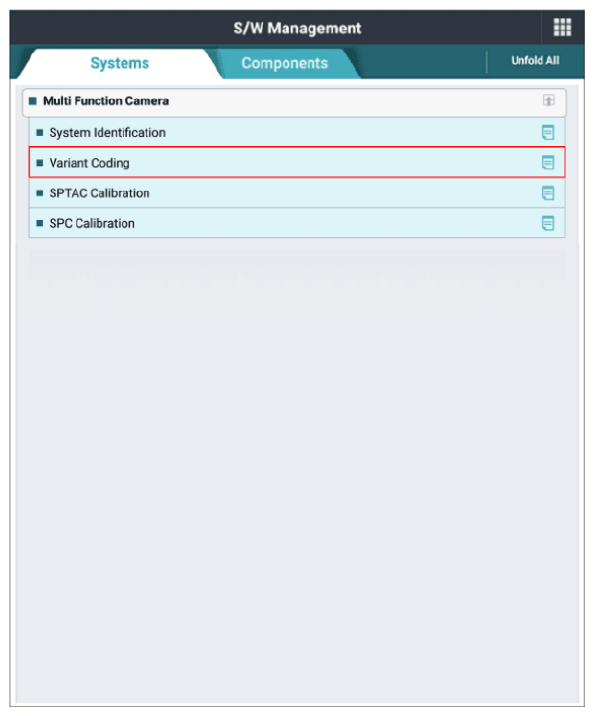

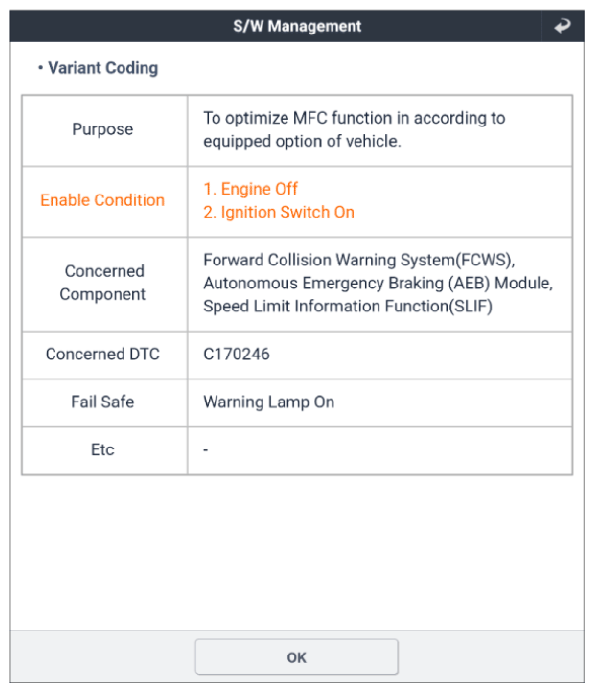

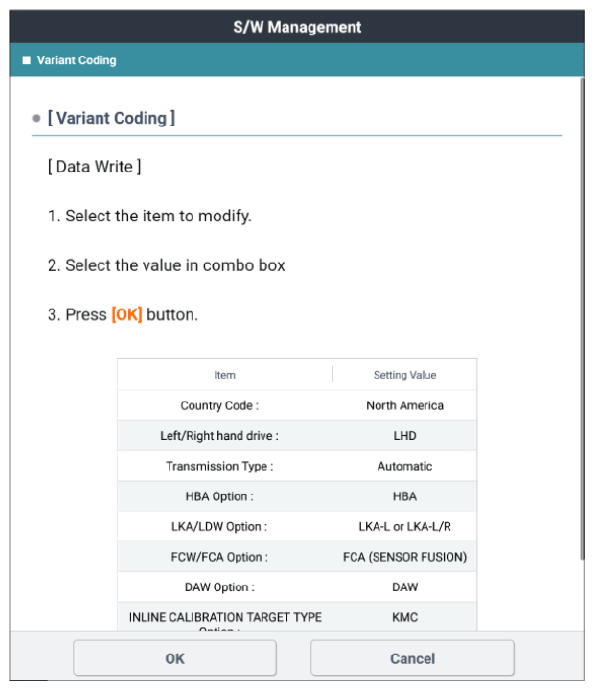

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Vehicle S/W Management" of concerned component with KDS.	Fig.1 to 4

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be caused by not performing variant coding after MFC ECU replacement. Go to "Verification of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the MFC ECU and go to "Verification of Repair " procedure.
* In case of replacing MFC ECU, perform following "System Inspection" procedures
