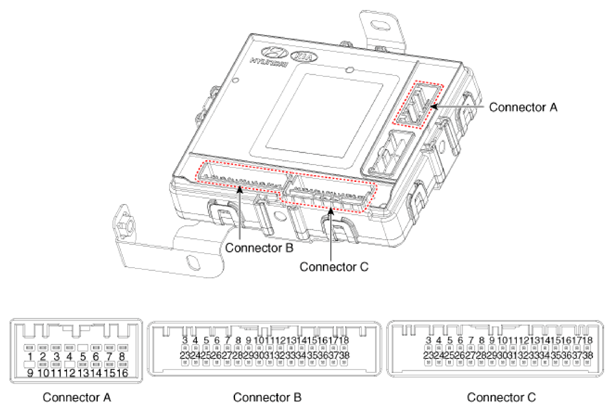

| 1 |
- |
- |
- |
| 2 |
Rear washer switch (Input) |
- |
- |
| 3 |
Front washer switch (Input) |
PDW-R power (Output) |
AT solenoid (Output) |
| 4 |
Power battery (+) |
- |
- |
| 5 |
- |
Sunroof status (Input) |
Key in switch (Input) |
| 6 |
Power ground |
Light switch (Input) |
KLINE immobilizer |
| 7 |
- |
Rear wiper switch (Input) |
Start relay (Output) |
| 8 |
- |
Front wiper volume switch (Input) |
Front wiper low back up switch (Input) |
| 9 |
- |
- |
Key inter lock switch (Input) |
| 10 |
- |
Fog lamp switch (Input) |
Wiper parking switch (Input) |
| 11 |
ECU battery (+) |
Front wiper switch (Input) |
Brake switch (Input) |
| 12 |
- |
Headlamp high switch (Input) |
- |
| 13 |
- |
ACC (Input) |
- |
| 14 |
ECU ground |
IGN 2 (Input) |
Assist seat belt indicator (Output) |
| 15 |
- |
- |
LIN 1 (PDW) |
| 16 |
- |
PDW-R power (Input) |
Front wiper low relay (Output) |
| 17 |
|
- |
Front wiper high relay (Output) |
| 18 |
Rear center seat belt indicator (Output) |
PDW-F power (Output) |
| 19 |
- |
- |
| 20 |
- |
- |
| 21 |
- |
- |
| 22 |
- |
- |
| 23 |
Keyhole illumination (Output) |
PDW option (Input) |
| 24 |
IGN 1 (Input) |
Multifunction Switch ground (Input) |
| 25 |
Front heated nozzle (Output) |
- |
| 26 |
- |
Immobilizer antenna power (Output) |
| 27 |
PDW-R switch (Input) |
Immobilizer antenna ground (Output) |
| 28 |
Rear right seat belt indicator (Output) |
Outside mirror unfolding (Output) |
| 29 |
Rear left seat belt indicator (Output) |
Outside mirror folding (Output) |
| 30 |
PDW-R switch indicator (Output) |
- |
| 31 |
Auto light sensor ground (Output) |
- |
| 32 |
Auto light sensor signal (Input) |
Key solenoid (Output) |
| 33 |
Auto light sensor power (Output) |
- |
| 34 |
LIN 3 (Rain sensor) |
Rear wiper relay (Output) |
| 35 |
B-CAN (Low) |
P-CAN (High) |
| 36 |
B-CAN (High) |
P-CAN (Low) |
| 37 |
- |
|
| 38 |
- |
| 39 |
- |
| 40 |
- |
