EVAP Leakage Test

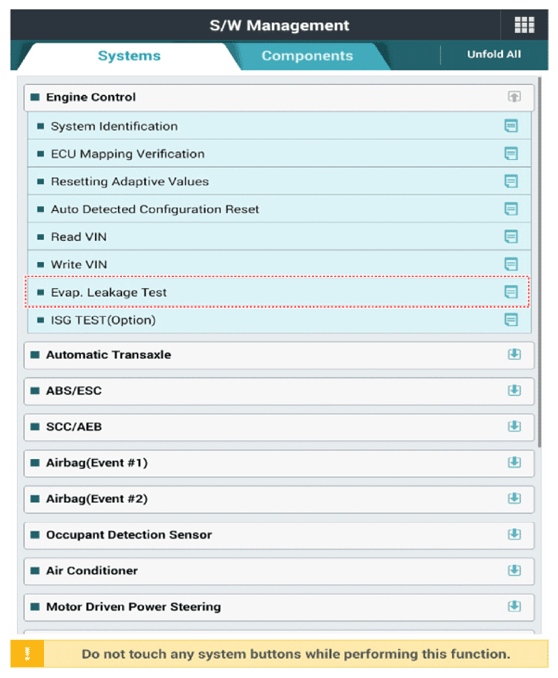

  1. Select "Evap. Leakage Test".
    G13280756Courtesy of KIA MOTORS AMERICA, INC.

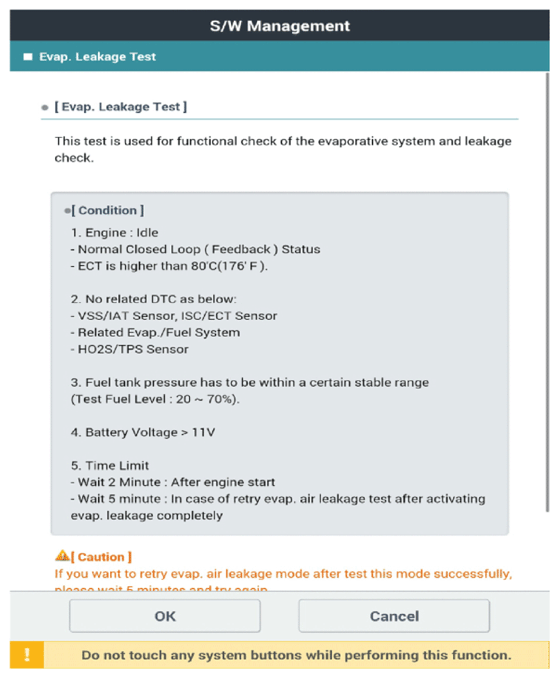

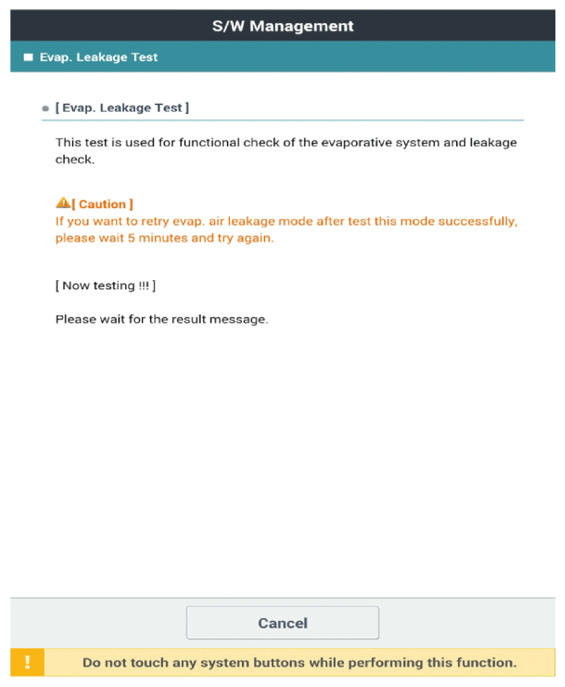

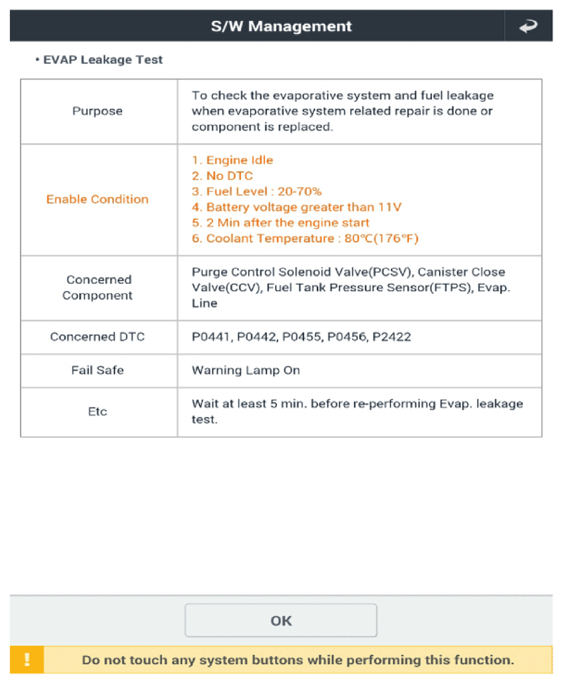

  2. Proceed with the test according to the screen introductions.
G13280757Courtesy of KIA MOTORS AMERICA, INC.
G13280758Courtesy of KIA MOTORS AMERICA, INC.
G13280759Courtesy of KIA MOTORS AMERICA, INC.
