Washer Fluid Level Sensor

  1. Disconnect the negative battery terminal.
  2. Remove the engine room under cover.

    G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

    G 2.0 MPI NU(ATKINSON) (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

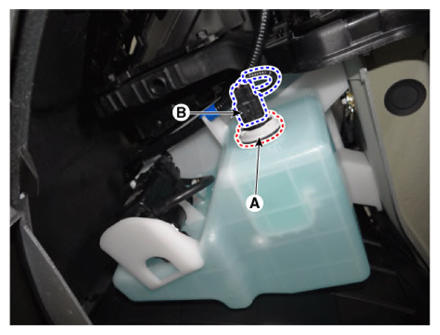

  3. Remove the washer fluid level sensor (A) after disconnecting the connector (B).
    G13282913Courtesy of KIA MOTORS AMERICA, INC.
