Dust Cap

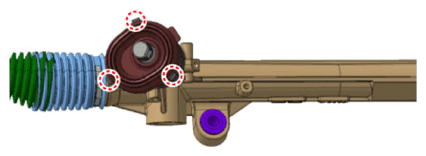

  1. Remove the dust cap cover.
    G13281569Courtesy of KIA MOTORS AMERICA, INC.

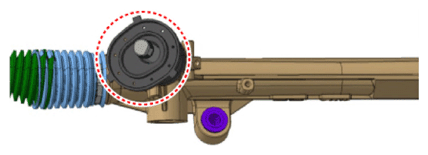

  2. Remove the dust cap.
    G13281570Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
