Components And Components Location: Components

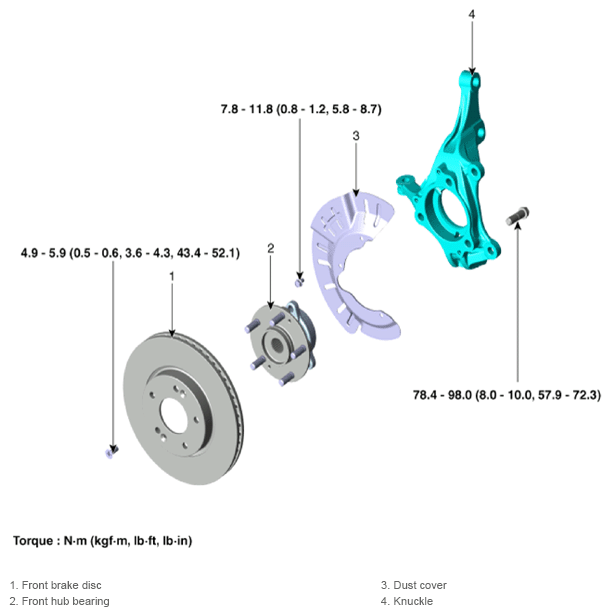

Fig 1: Front Hub/Knuckle Components Location With Torque Specification

G13281231

Courtesy of KIA MOTORS AMERICA, INC.
