[Nu 2.0 MPI]

NOTE: Be careful that no contaminates enter into spark plug holes.

Remove the ignition coil.
(Refer to Engine Electrical System - "IGNITION COIL ")

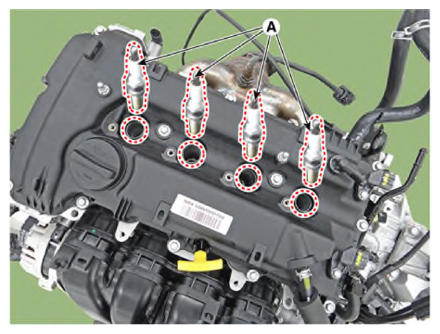

Using a spark plug wrench, remove the spark plug (A).
Tightening torque:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.0 Ib.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
