Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Variant Coding.
  2. Ignition "ON".
  1. Connect KDS to "Data Link connector (DLC)".
  2. Perform "Variant Coding" in "Vehicle S/W management" with KDS.
 Fig.1 to 6

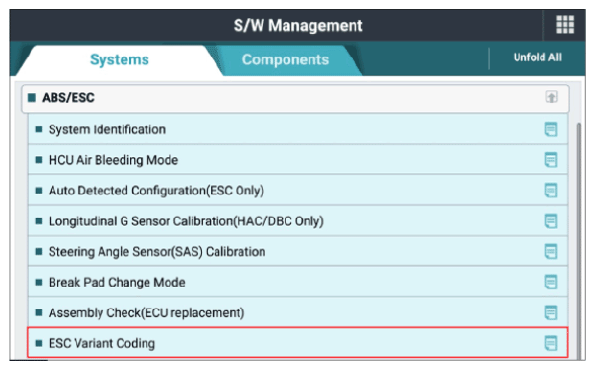

G13285816Courtesy of KIA MOTORS AMERICA, INC.

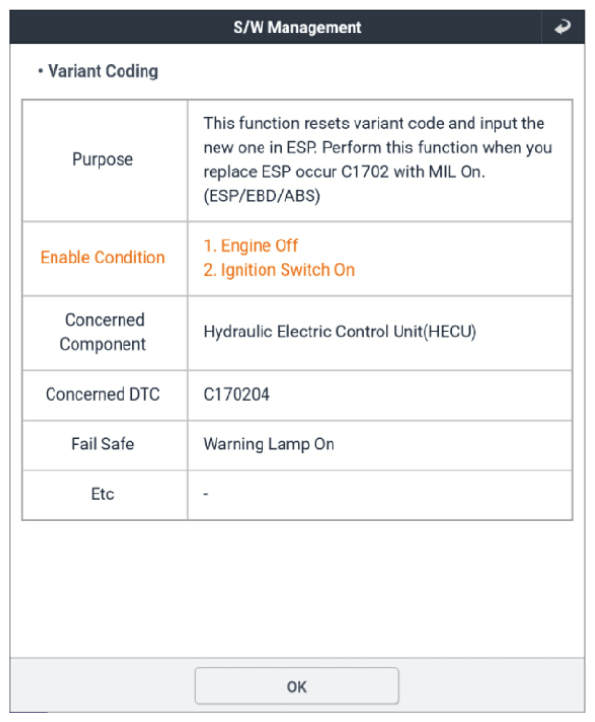

G13285817Courtesy of KIA MOTORS AMERICA, INC.

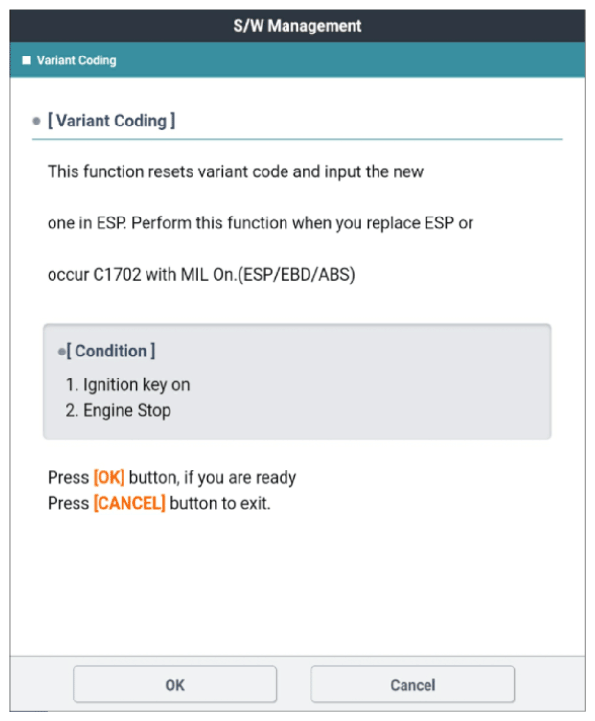

G13285818Courtesy of KIA MOTORS AMERICA, INC.

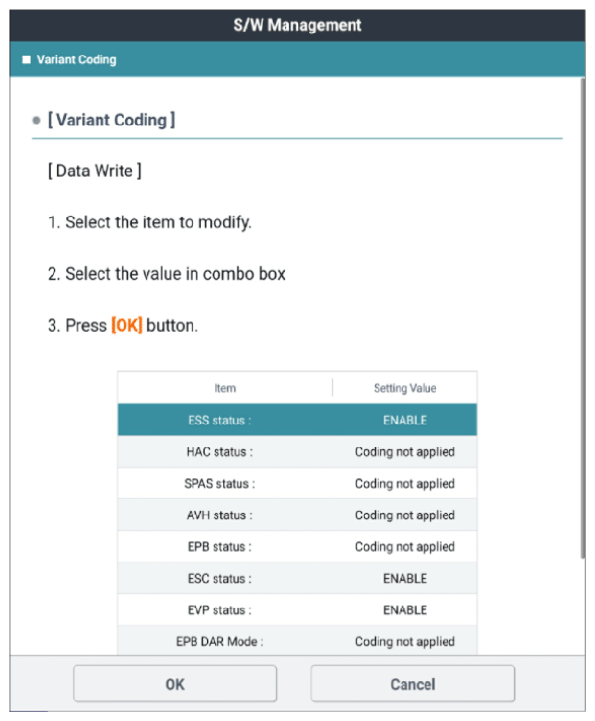

G13285819Courtesy of KIA MOTORS AMERICA, INC.

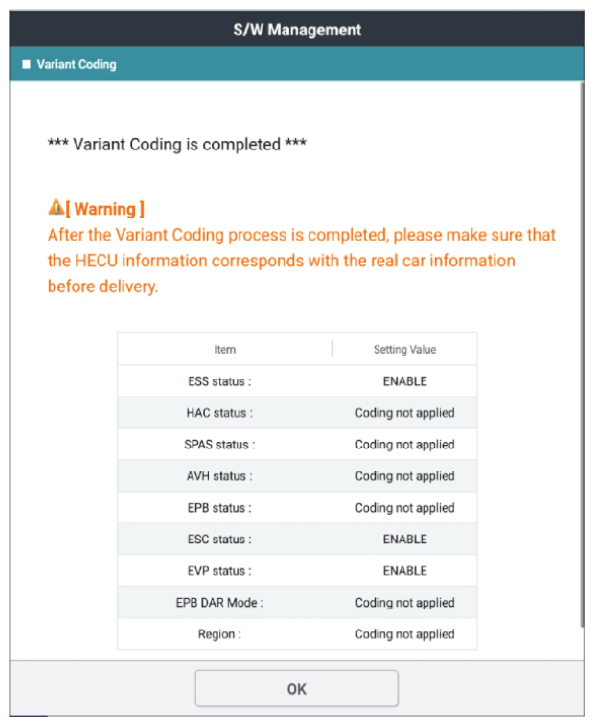

G13285820Courtesy of KIA MOTORS AMERICA, INC.

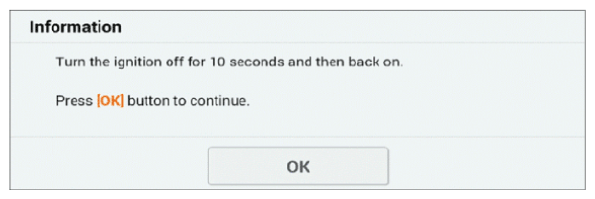

G13285821Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Auto Detected Configuration Reset (ESP (ESC) Only).
  2. Ignition "ON".
  1. Connect KDS to "Data Link connector (DLC)".
  2. Perform "Auto Detected Configuration Reset (ESP(ESC) Only)" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

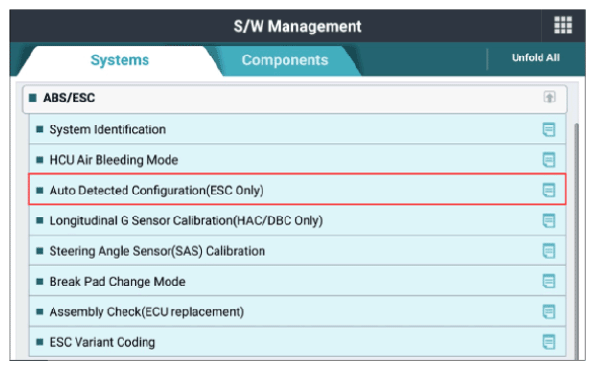

G13285822Courtesy of KIA MOTORS AMERICA, INC.

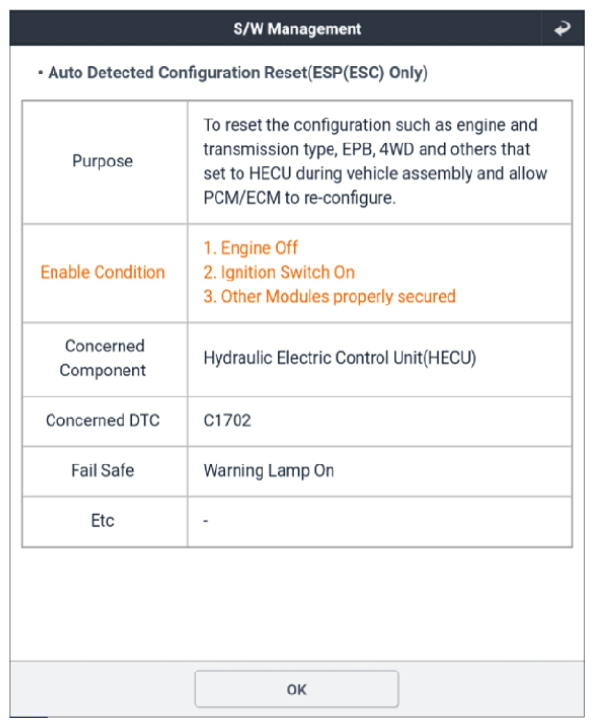

G13285823Courtesy of KIA MOTORS AMERICA, INC.

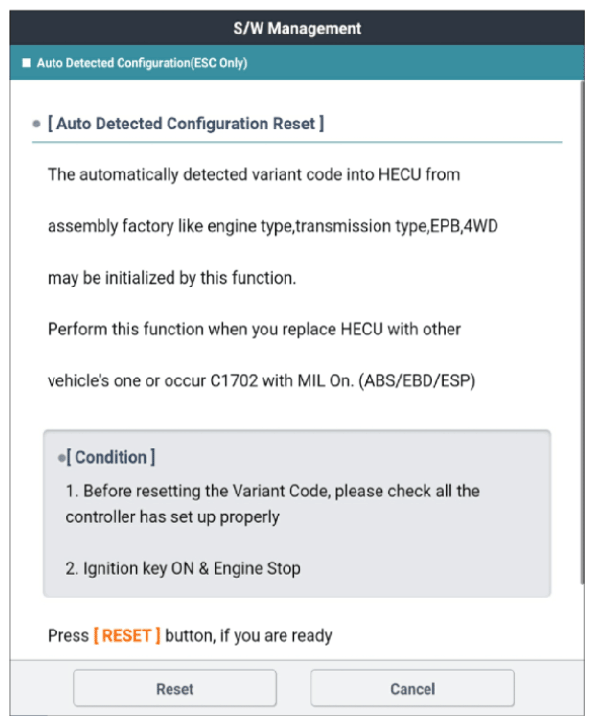

G13285824Courtesy of KIA MOTORS AMERICA, INC.

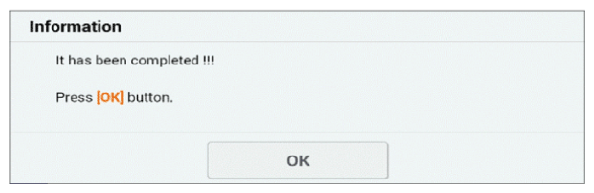

G13285825Courtesy of KIA MOTORS AMERICA, INC.
