Liftgate Lock Module

  1. Remove the liftgate lid trim.

    (Refer to Body - "LIFTGATE TRIM ")

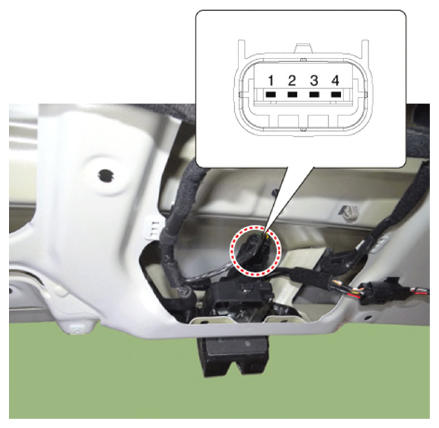

  2. Disconnect the connector from the liftgate lid latch.
    G13282550Courtesy of KIA MOTORS AMERICA, INC.
  3. Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
G13282551Courtesy of KIA MOTORS AMERICA, INC.
G00607679Courtesy of KIA MOTORS AMERICA, INC.
