Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 10

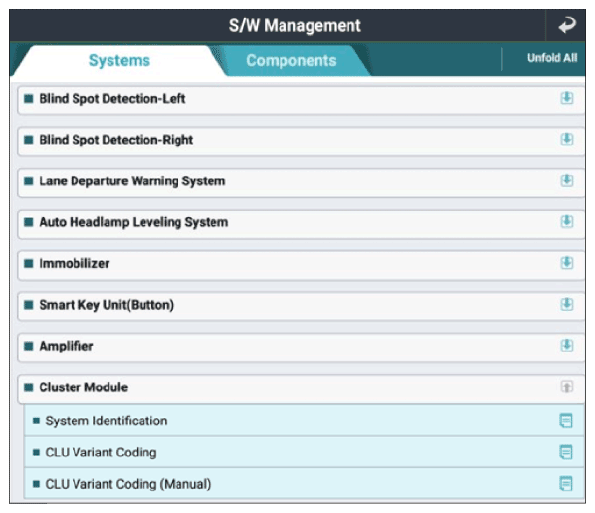

G13286231Courtesy of KIA MOTORS AMERICA, INC.

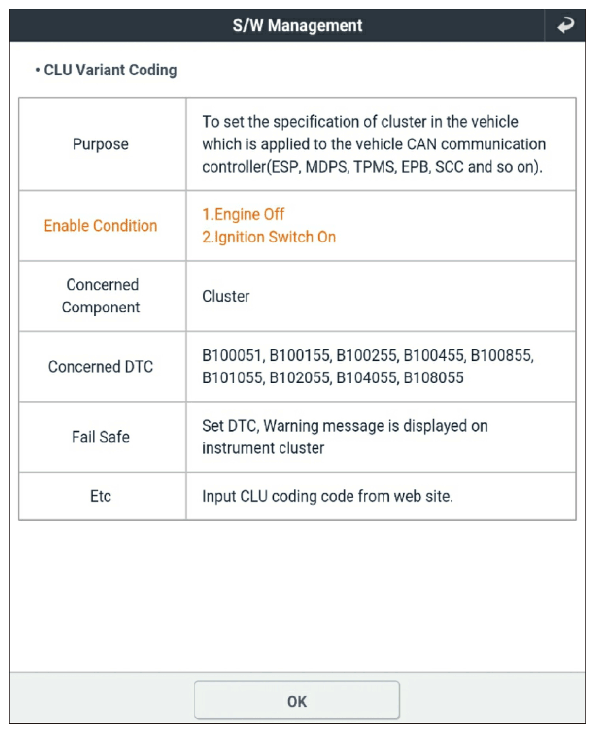

G13286232Courtesy of KIA MOTORS AMERICA, INC.

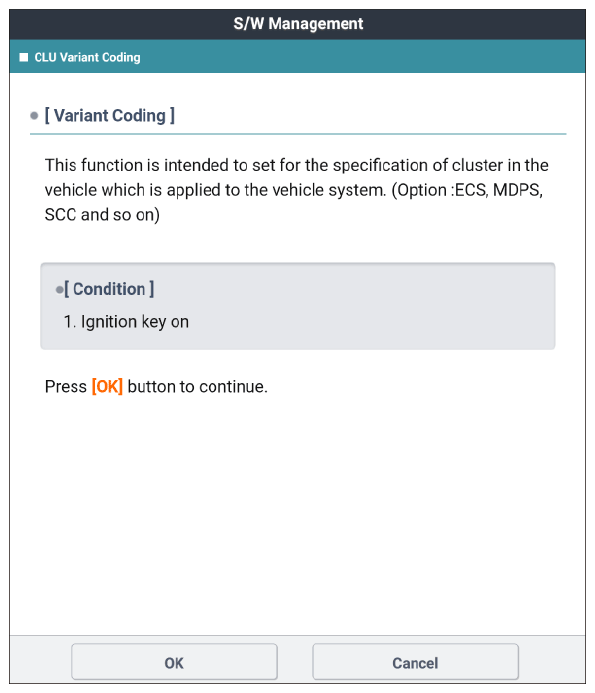

G13286233Courtesy of KIA MOTORS AMERICA, INC.

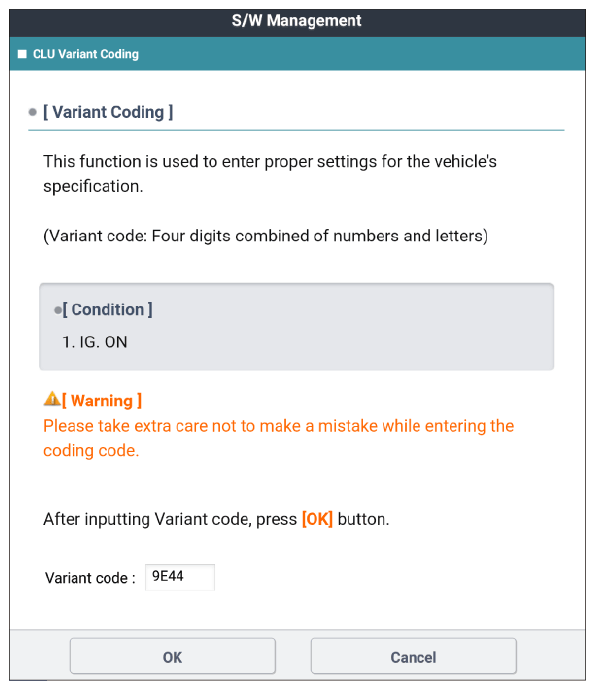

G13286234Courtesy of KIA MOTORS AMERICA, INC.

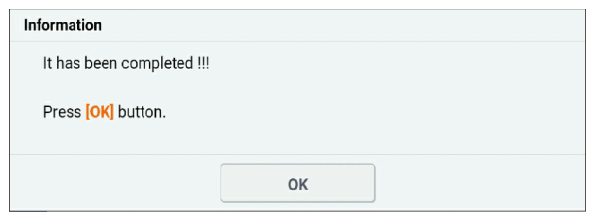

G13286235Courtesy of KIA MOTORS AMERICA, INC.

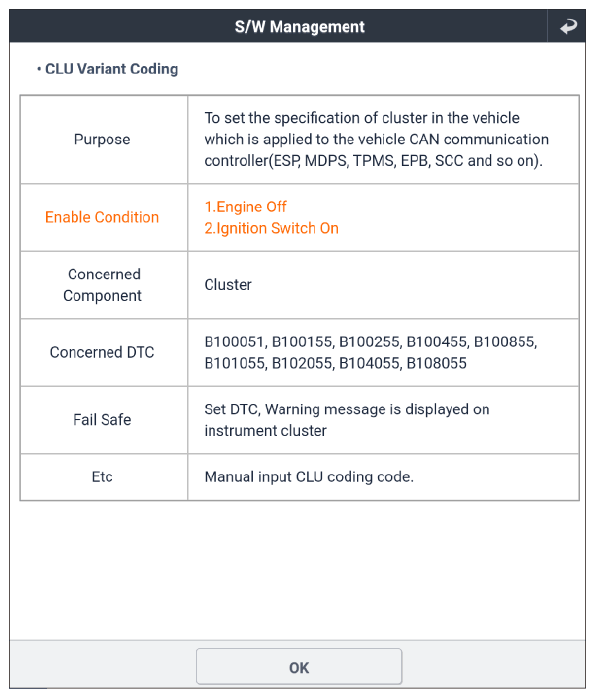

G13286236Courtesy of KIA MOTORS AMERICA, INC.

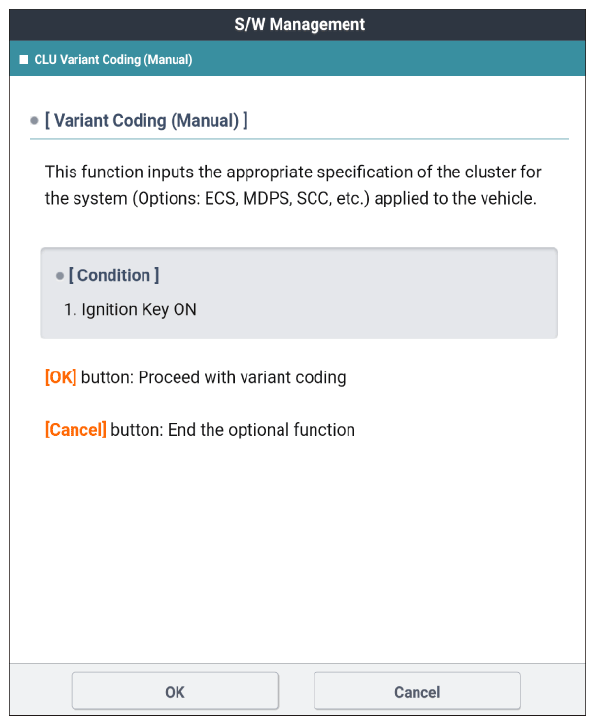

G13286237Courtesy of KIA MOTORS AMERICA, INC.

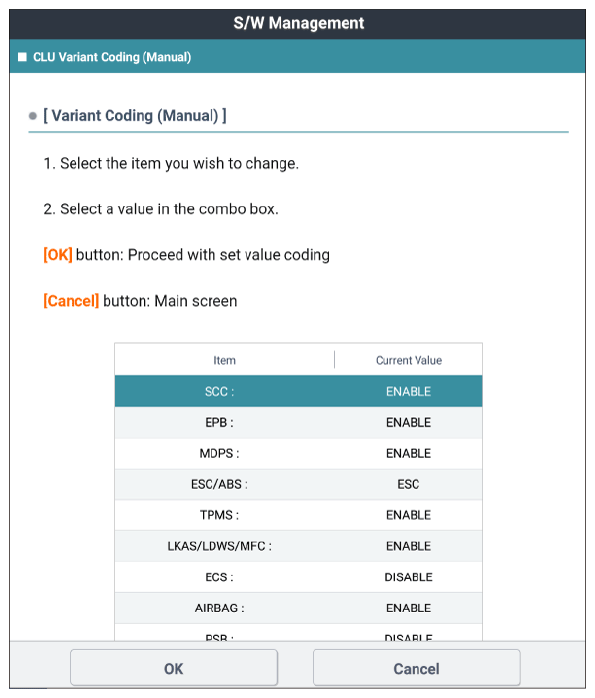

G13286238Courtesy of KIA MOTORS AMERICA, INC.

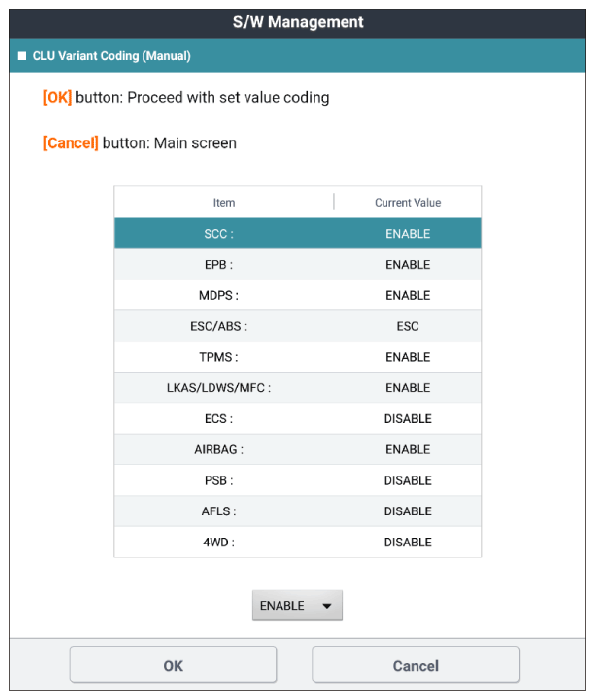

G13286239Courtesy of KIA MOTORS AMERICA, INC.
G13286240Courtesy of KIA MOTORS AMERICA, INC.
