Component Location

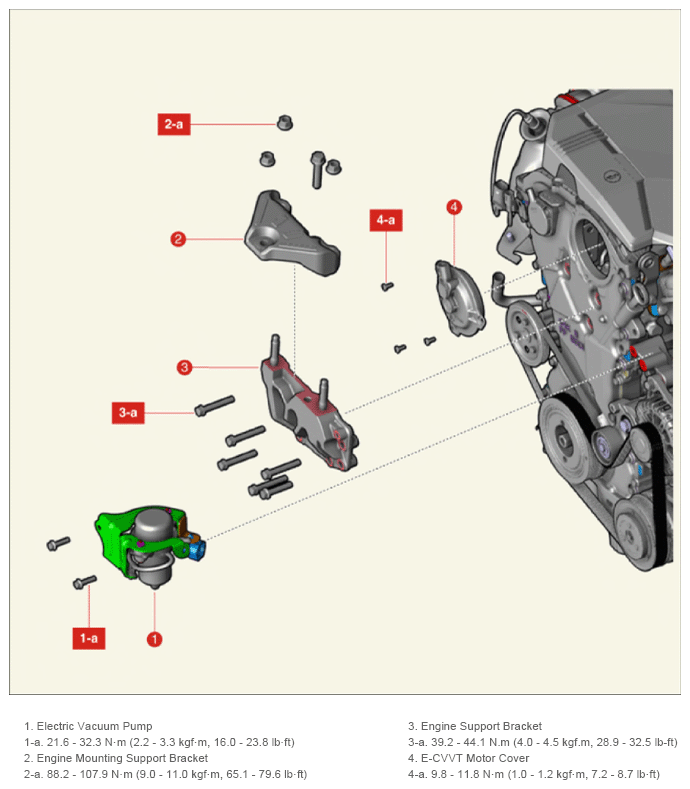

Fig 1: E-CVVT Motor Cover Components With Torque Specification
G13664752Courtesy of KIA MOTORS AMERICA, INC.
